Power Control System
›

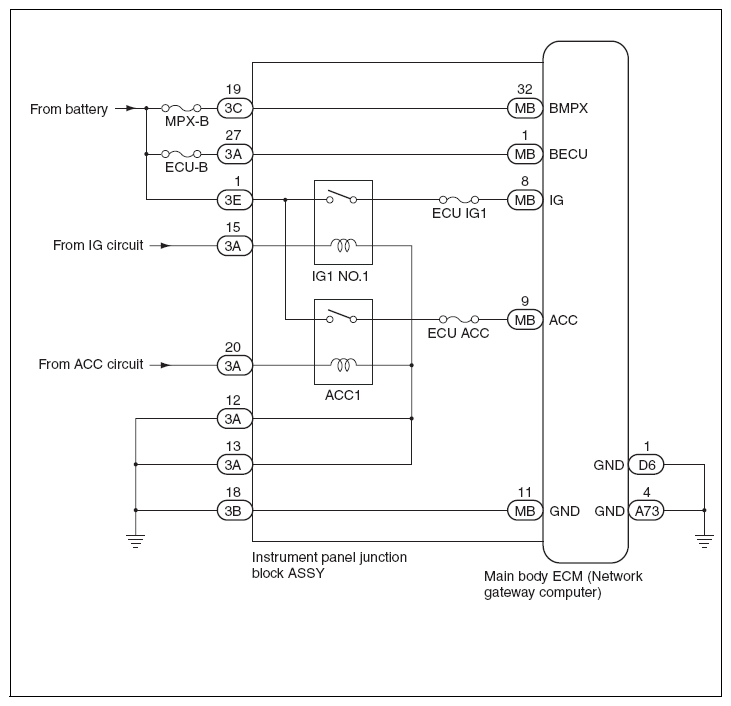

Circuit Figure
Circuit Figure
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
