System Block Diagram

WARNING: This page is about a different variant/trim than selected.

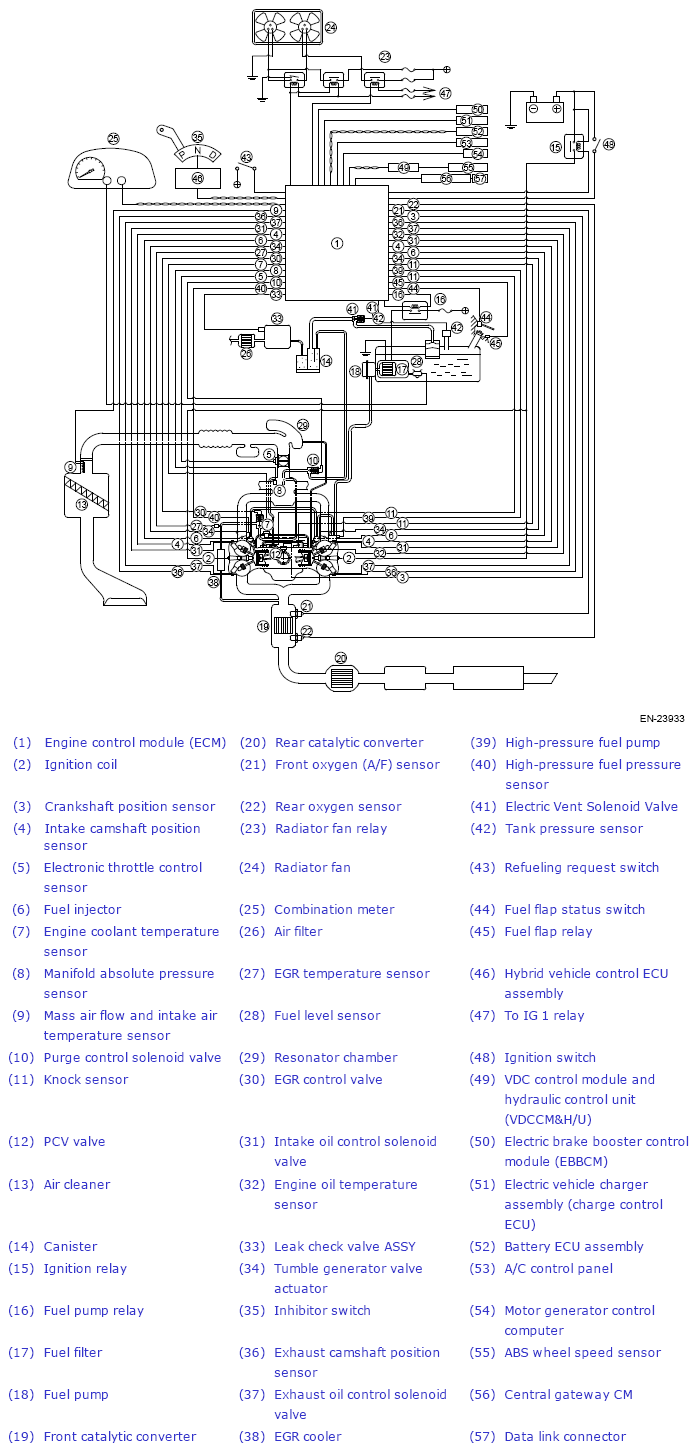

G13238618Courtesy of SUBARU OF AMERICA, INC.

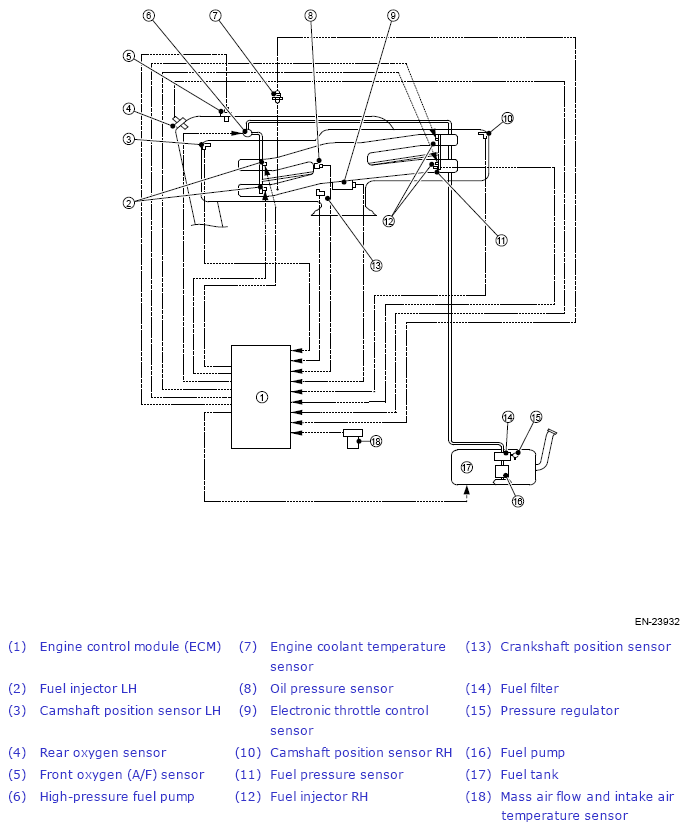

G13238619Courtesy of SUBARU OF AMERICA, INC.
