Keyless Buzzer: Installation

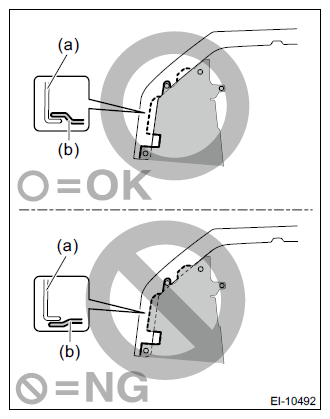

CAUTION: Install the mud guard - front so that the front end of the mud guard (b), except for the clip fixing point, comes inside the bumper face (a).

G11245697

Courtesy of SUBARU OF AMERICA, INC.

Install the keyless buzzer.
Install the mud guard - front.
Install the under cover - front.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Lower the vehicle.
Connect the battery ground terminal. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
