Front Seat: Assembly

CAUTION:

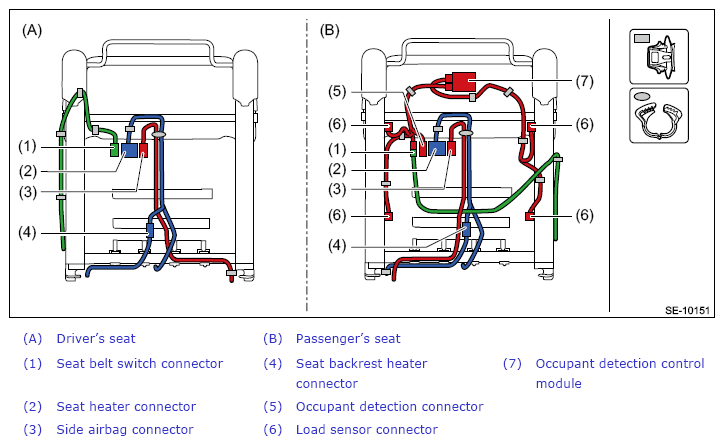

Do not confuse the harness routing of the side airbag harness and the seat belt inner - front harness, etc. Assembling with harnesses improperly routed may cause the harness to get caught and short out.

If the hook spring of the frame assembly - front backrest is deformed or comes off due to the deformation, replace the flat mat & hook spring assembly with a new part.

Courtesy of SUBARU OF AMERICA, INC.

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Refer to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .

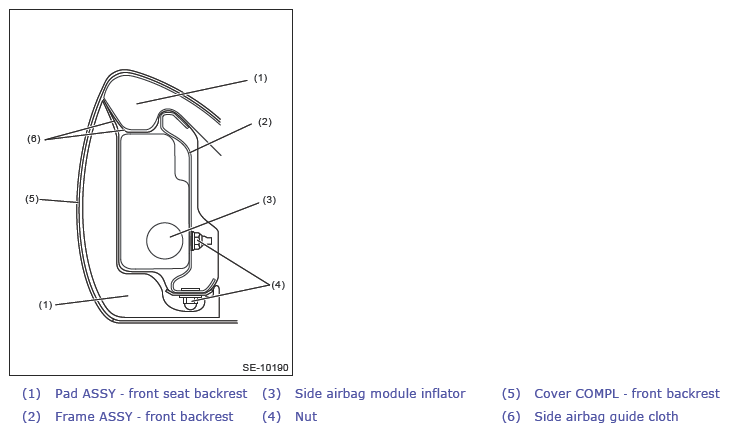

Make sure that the side airbag module is installed as shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.

Besides, if the cover COMPL - front backrest is not installed securely, the side airbag may not be activated properly, therefore keep strictly to the following procedures.

Do not reuse the mounting bolts and nuts of the airbag module.
Always replace with the specified new bolts and nuts.
Be careful not to stain or damage the cover COMPL - front backrest during assembly.
Do not reuse the hog ring and hang wire.
Secure the hog ring using hog ring pliers.
Install the hog rings to the specified points securely and make sure that there is no wrinkle or twisting on the cover COMPL - front backrest.

Install a new occupant detection control module. (Passenger's side only)
CAUTION: If the occupant detection control module is removed from the bracket, do not reuse it. Once removed from the bracket, the engaging force of the claw is reduced, and it may come off from the bracket due to vibration while driving.
Install the seat heater module.
CAUTION: If the seat heater module is reused, remove the polyurethane section and double-sided tape from the reverse side completely. Be sure to use new double-sided tape.

Preparation items:

Double-sided tape: NITTO DENKO 501L or equivalent
Make sure that there is no foreign matter on side airbag module.

Assemble the seat cover.

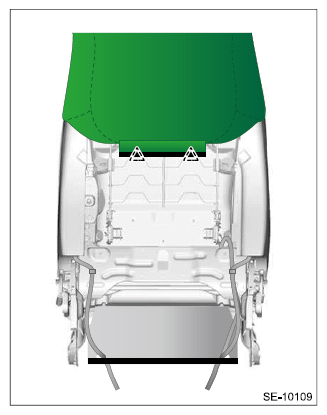

Adjust so that the left and right clearances between wire and seat pad become equal, and mark the seat pad.

Courtesy of SUBARU OF AMERICA, INC.

Mark the center of the wire on the pad side to which the hog ring is attached.

Courtesy of SUBARU OF AMERICA, INC.

Insert the wire into the seat cover, and align the wire with the position marked in step 1).

Courtesy of SUBARU OF AMERICA, INC.

Mark the wire on the seat cover side according to the markings on the seat pad.

Courtesy of SUBARU OF AMERICA, INC.

Perform steps (1) to (4) for all sections to which the hog rings are attached.

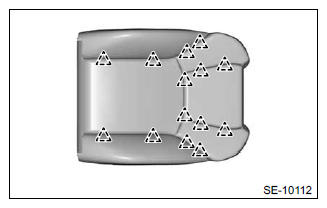

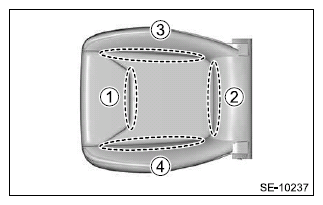

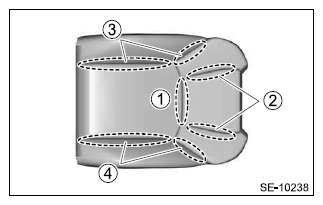

Secure the hang wire with new hog rings in the order from (1) - (4).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

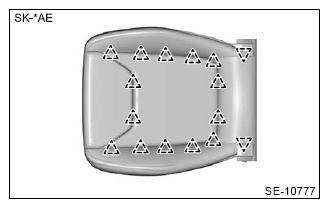

Make sure that all hog rings are attached securely.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Assemble remaining parts in the reverse order of disassemble.

NOTE:

Check the shape and front/rear directions before assembling the headrest bushing.

Courtesy of SUBARU OF AMERICA, INC.

When installing the seat belt inner - front, follow the procedures described in the seat belt section. Refer to SEAT BELT SYSTEM>FRONT SEAT BELT>INSTALLATION .
Install the backrest assembly and seat cushion assembly in the following procedure.

Temporarily tighten the four reclining hinge bolts.
Place the backrest in the most upright position.

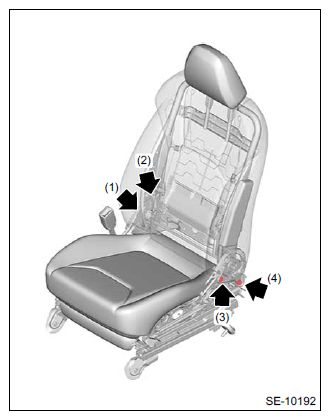

Tighten the reclining hinge bolts in order from (1) to (4) two or three times, until they reach the specified torque.

Fig 1: Reclining Hinge Bolts Tightening Sequence

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Refer to "COMPONENT" of "General Description". Refer to SEATS>GENERAL DESCRIPTION>COMPONENT>FRONT SEAT .

If any wrinkles are found after the assembly of the seat cover, finish the seat cover with iron.

Place the wet towel on wrinkles.

Courtesy of SUBARU OF AMERICA, INC.

Touch up with warm iron.

CAUTION: Keep moving the iron, otherwise the seat cover surface can be damaged.

NOTE: This method is available for genuine leather, synthetic leather, cloth, etc.

Courtesy of SUBARU OF AMERICA, INC.

Install connectors located under the front seat.

Manual seat

Courtesy of SUBARU OF AMERICA, INC.

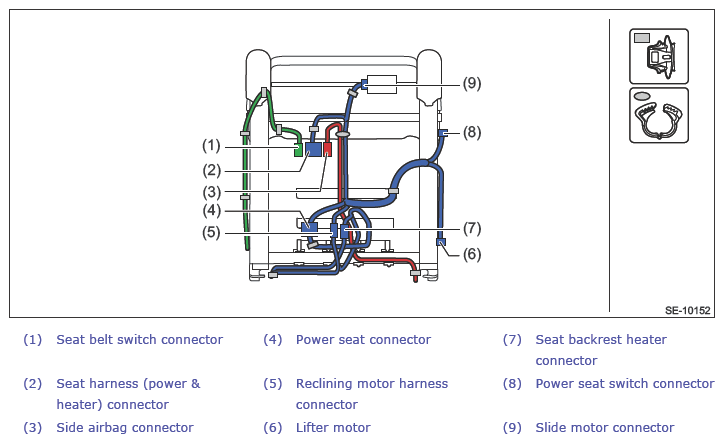

Power seat

Courtesy of SUBARU OF AMERICA, INC.

Install the seat assembly. Refer to SEATS>FRONT SEAT>INSTALLATION .

CAUTION: For the passenger's seat, be sure to perform [Rezeroing] for the occupant detection system after installing the seat assembly. Refer to OCCUPANT DETECTION (DIAGNOSTICS)>REZERO .
