Main Switch

  1. Disconnect the ground terminal from battery and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY>GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the trim panel - front door. Refer to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>FRONT DOOR .

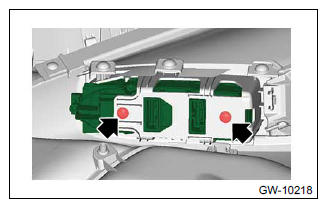

  3. Remove the screws and remove the switch - power window main.
G11246109Courtesy of SUBARU OF AMERICA, INC.
