Engine Mounting

• CVT model

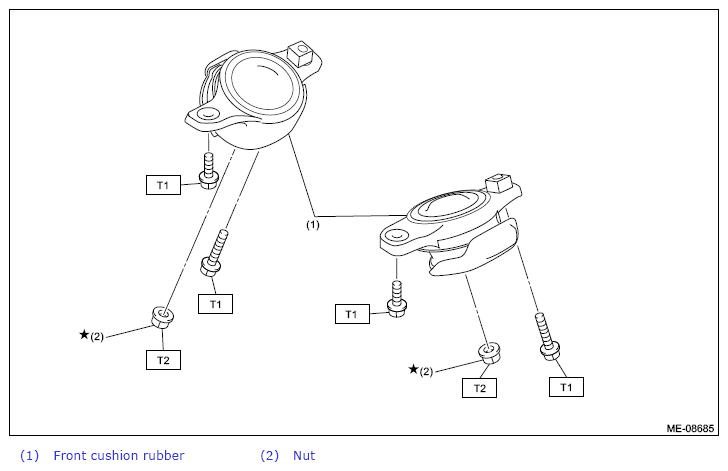

  Fig 1: Engine Mounting Components (With Torque Specification) (CVT Model)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 35 (3.6, 25.8)

  T2: 90 (9.2, 66.4)

• MT model

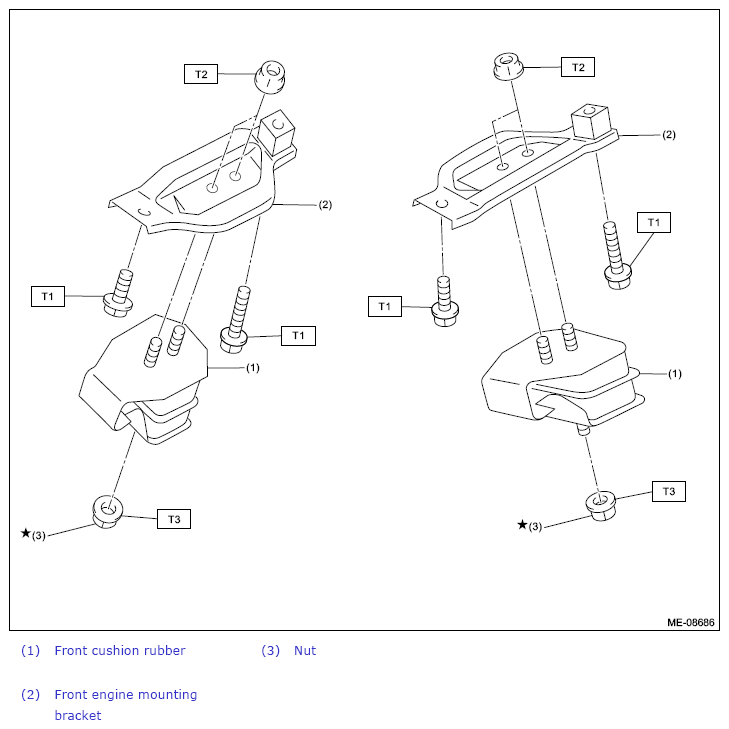

Fig 2: Engine Mounting Components (With Torque Specification) (MT Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 35 (3.6, 25.8)

T2: 42 (4.3, 31.0)

T3: 90 (9.2, 66.4)
