Throttle Body

• Impreza model

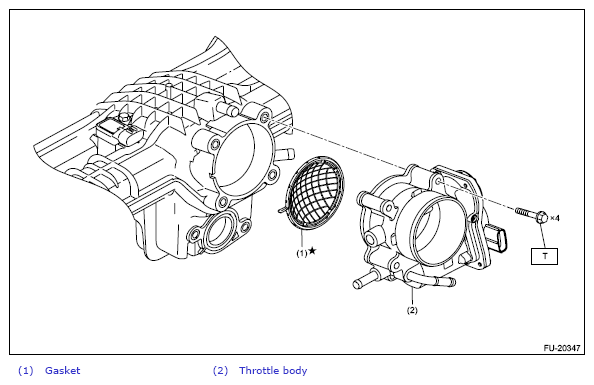

Fig 1: Throttle Body Components (With Torque Specifications) (Impreza Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 8 (0.8, 5.9)

• Crosstrek model

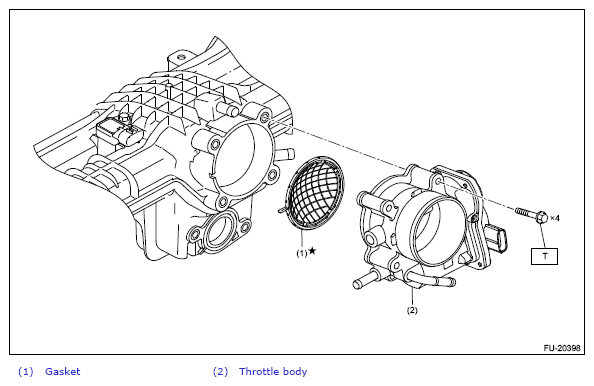

Fig 2: Throttle Body Components (With Torque Specifications) (Crosstrek Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 8 (0.8, 5.9)
