AT Shift Lock Control System
›
Wiring Diagram
›
Model With Push Button Ignition Switch
Model With Push Button Ignition Switch

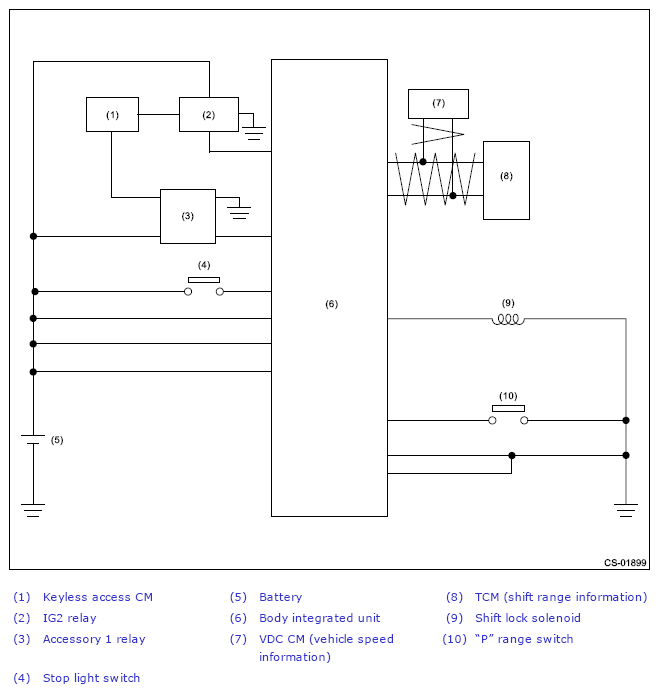

Except for Crosstrek hybrid model
Courtesy of SUBARU OF AMERICA, INC.

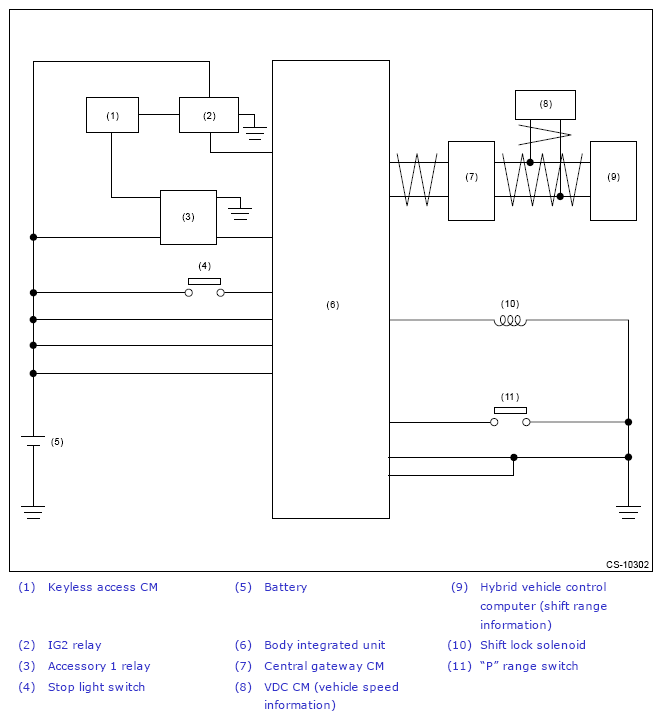

Crosstrek hybrid model
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
