AT Select Lever

• Except for Crosstrek hybrid model

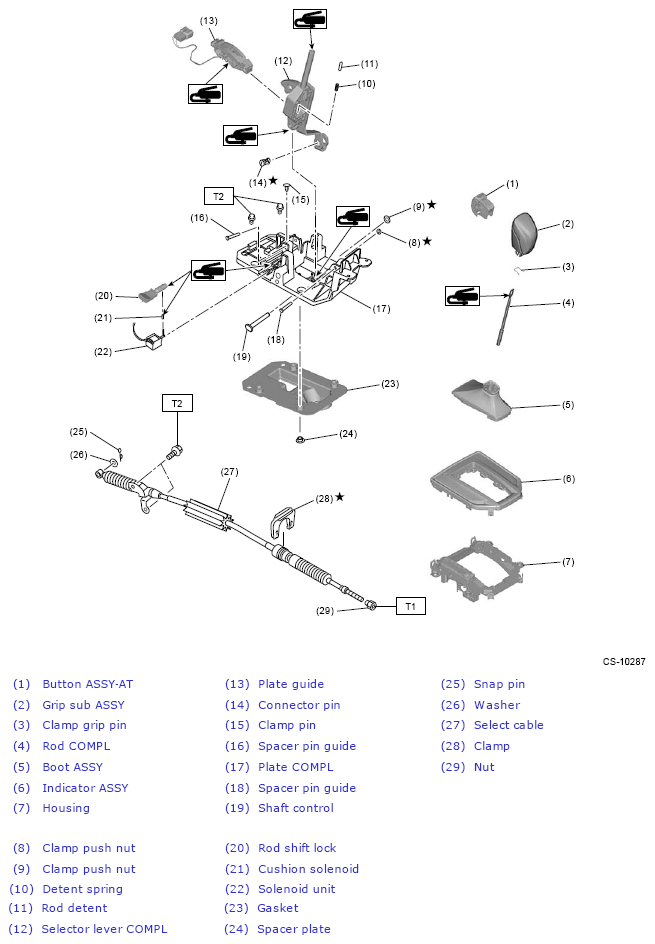

  Fig 1: AT Select Lever Components (With Torque Specifications) (Except For Crosstrek Hybrid Model)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 7.5 (0.8, 5.5)

  T2: 18 (1.8, 13.3)

• Crosstrek hybrid model

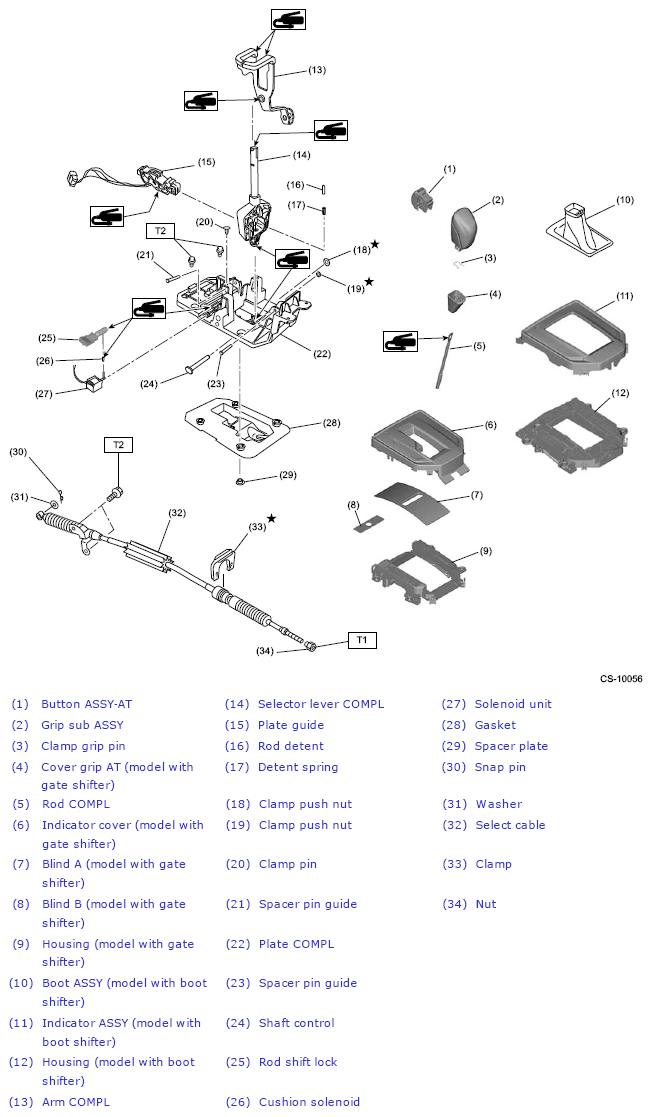

Fig 2: AT Select Lever Components (With Torque Specifications) (Crosstrek Hybrid Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 18 (1.8, 13.3)
