Front Fog Light Assembly: Disassembly
CAUTION:
- Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
- Do not leave the fog light assembly front without the bulb for a long time. Dust, moisture, etc. entering the light may affect its performance.
- When removing with the bumper face front installed, turn over the mud guard front and remove the front fog light bulbs.

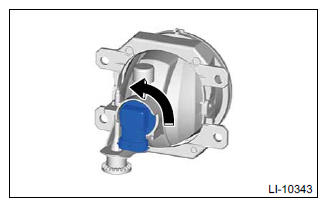

Rotate in the direction of arrow shown in the figure to remove the front fog light bulb.
