Power Rear Gate Inner Switch: Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cap panel rear gate switch.

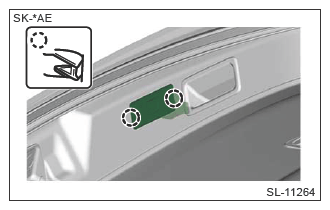

    1. Release the claws and pull out the cap panel rear gate switch rearward.
      CAUTION: When using a flat tip screwdriver, use an appropriate sized tool for the insertion opening, apply protective tape or cloth around the tool, and be careful not to cause damage.
      G13227255Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the cap panel rear gate switch.
  3. Release the claws and remove the power rear gate inner switch and the power rear gate lock switch.
