Front Seat

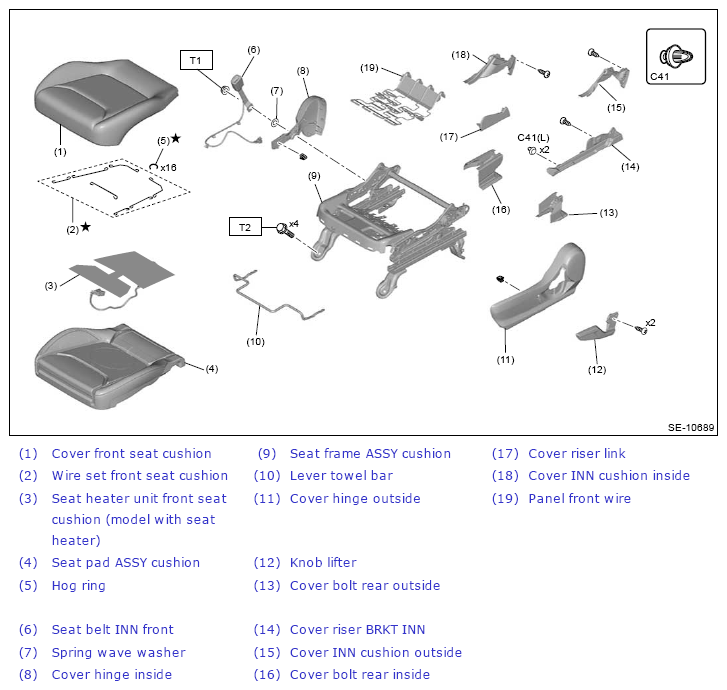

Fig 1: Front Driver's Seat (Manual Type) Components (With Torque Specification) (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 52 (5.3, 38.4)

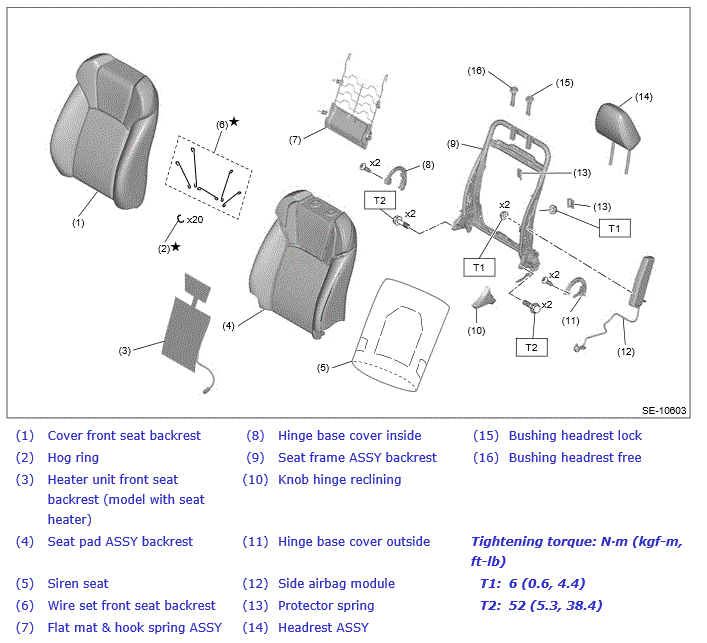

Fig 2: Front Driver's Seat (Manual Type) Components (With Torque Specification) (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 38 (3.9, 28.0)

T2: 53 (5.4, 39.1)

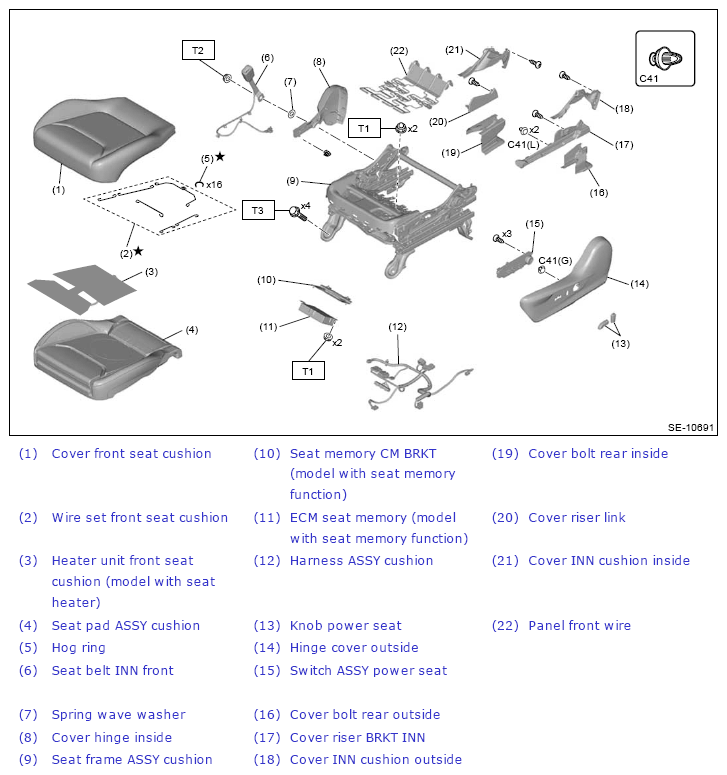

Fig 3: Front Driver's Seat (Power Type) Components (With Torque Specification) (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 52 (5.3, 38.4)

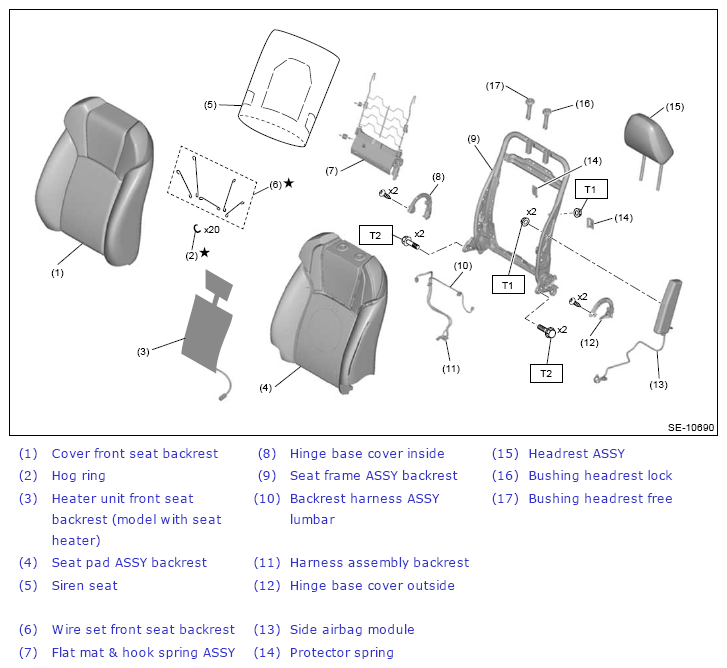

Fig 4: Front Driver's Seat (Power Type) Components (With Torque Specification) (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 38 (3.9, 28.0)

T3: 53 (5.4, 39.1)

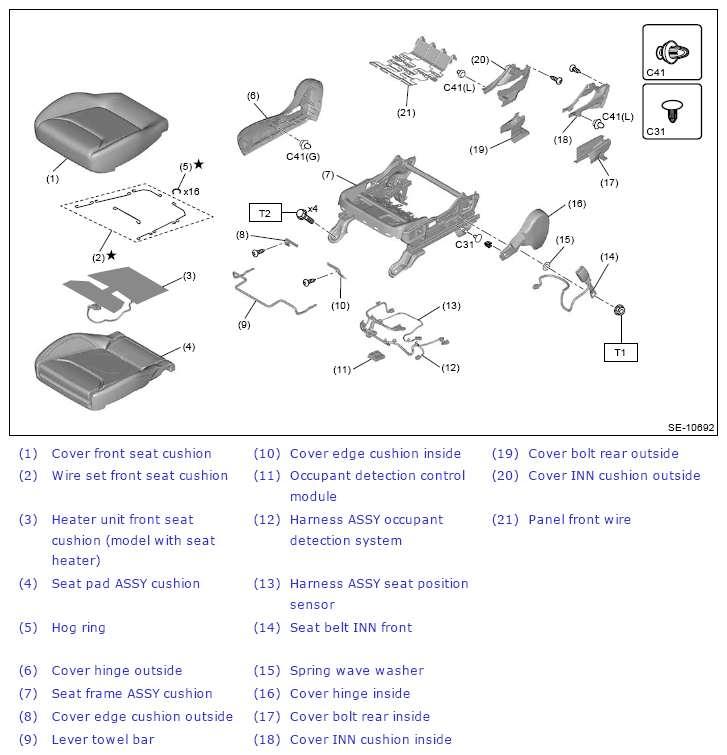

Fig 5: Front Passenger's Seat (Manual Type) Components (With Torque Specification) (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 52 (5.3, 38.4)

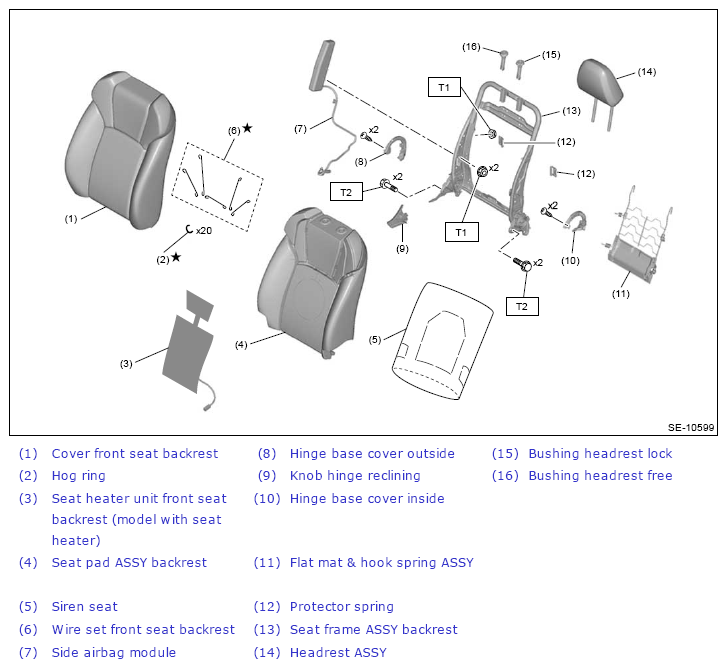

Fig 6: Front Passenger's Seat (Manual Type) Components (With Torque Specification) (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 38 (3.9, 28.0)

T2: 53 (5.4, 39.1)

NOTE: Do not disassemble the load sensor, cushion frame assembly and slide rail assembly, which are integrated in an assembly component.

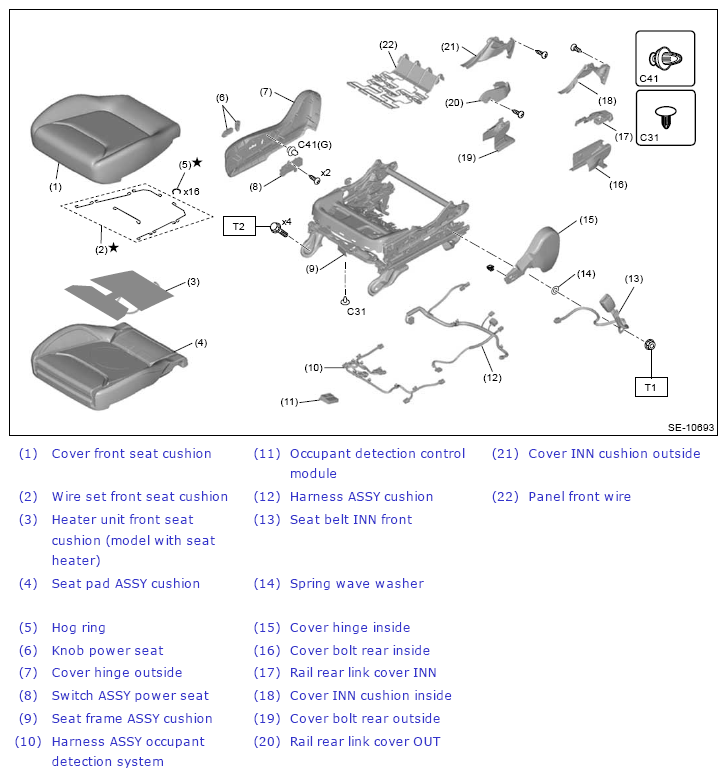

Fig 7: Front Passenger's Seat (Power Type) Components (With Torque Specification) (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 52 (5.3, 38.4)

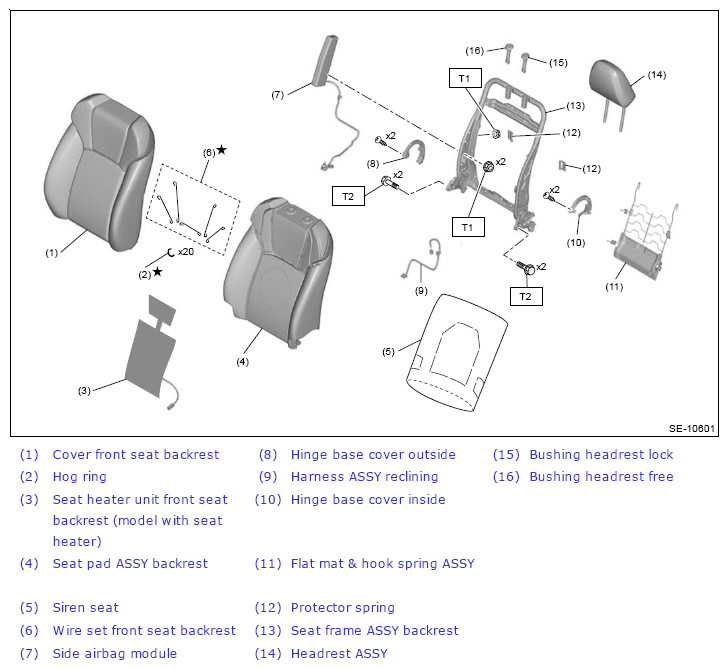

Fig 8: Front Passenger's Seat (Power Type) Components (With Torque Specification) (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 38 (3.9, 28.0)

T2: 53 (5.4, 39.1)

NOTE: Do not disassemble the load sensor, cushion frame assembly and slide rail assembly, which are integrated in an assembly component.
