Relay and Fuse: Location

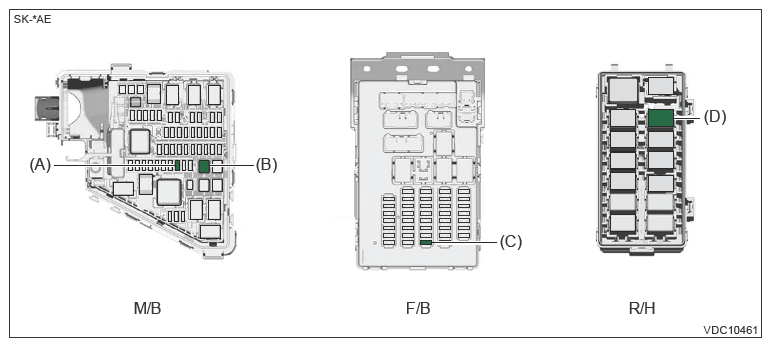

G13225334

Courtesy of SUBARU OF AMERICA, INC.

Main fuse box (M/B)	Fuse 30 A (VDC CM&H/U)	(A)
Main fuse box (M/B)	Fuse 40 A (VDC CM&H/U)	(B)
Fuse & relay box (F/B)	Fuse 7.5 A (VDC CM&H/U)	(C)
Relay holder (R/H)	Brake light relay	(D)

NOTE: For other related fuses, refer to the wiring diagram. Ref. to WIRING SYSTEM>POWER SUPPLY CIRCUIT .
