Oil Pan Upper

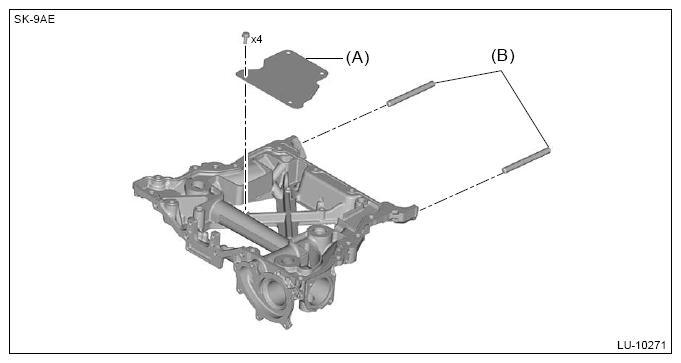

  1. Remove the baffle plate (A).
  2. Remove the stud bolt (B).
G13224812Courtesy of SUBARU OF AMERICA, INC.
