Front Exhaust Pipe: Removal

CAUTION: Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.

1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the crossmember support rear LH. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .

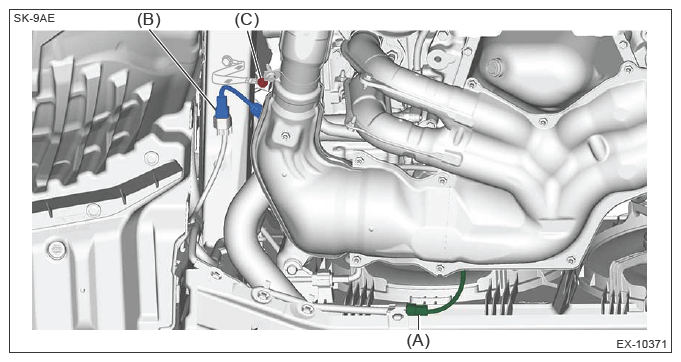

3. Disconnect the front oxygen (A/F) sensor connector (A), rear oxygen sensor connector (B) and the ground cord (C).

   Courtesy of SUBARU OF AMERICA, INC.

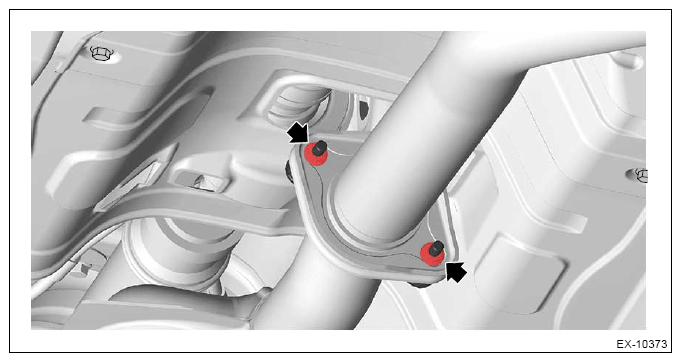

4. Separate the front exhaust pipe and rear exhaust pipe.

   Courtesy of SUBARU OF AMERICA, INC.

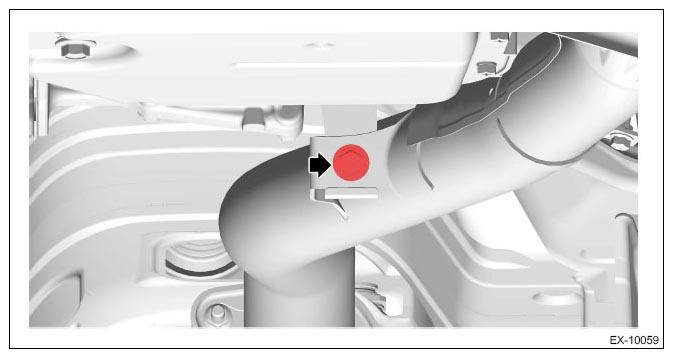

5. Remove the bolt which holds front exhaust pipe to hanger bracket.

   Courtesy of SUBARU OF AMERICA, INC.

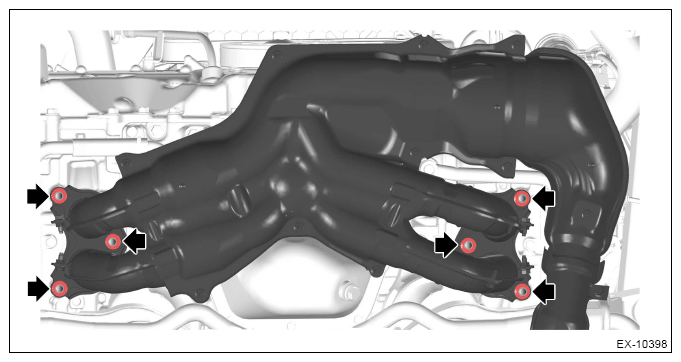

6. Remove the front exhaust pipe.

CAUTION: The front exhaust pipe is very heavy. Be careful not to drop it when removing.

Courtesy of SUBARU OF AMERICA, INC.
