Air Intake Duct: Removal

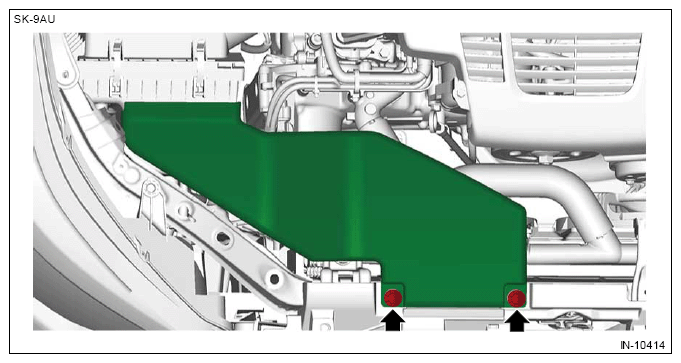

- Remove the clips and remove the air intake duct (rear).
 Courtesy of SUBARU OF AMERICA, INC.
|

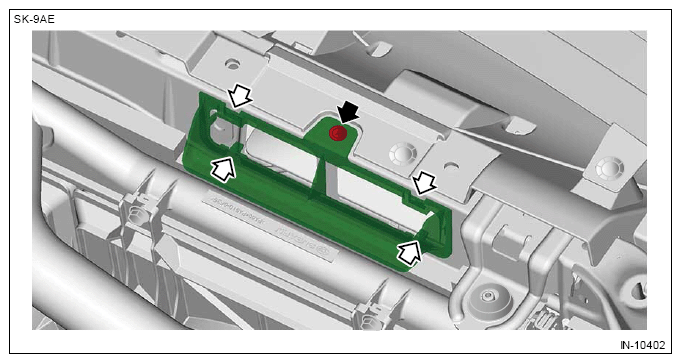

- Remove the clips to release the claws and remove the air intake duct (front).
NOTE:
Perform this procedure only when required.
 Courtesy of SUBARU OF AMERICA, INC.
|
