General Description
›
Components With Torque Specifications
›
Valve Assembly
Valve Assembly

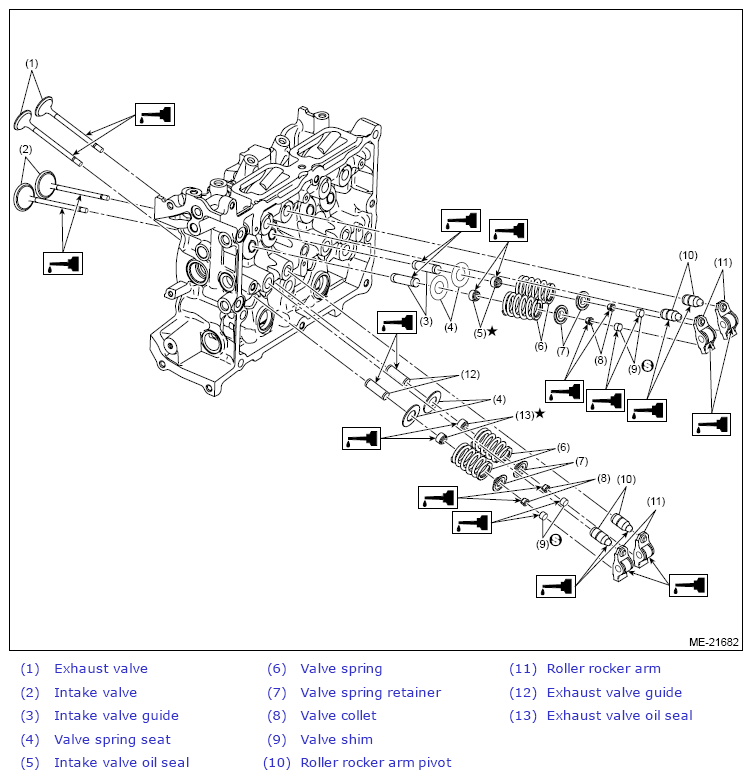

Fig 1: Valve Assembly Components (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
