Auto Start Stop System (Diagnostics)
›
Electrical Component Location
›
Location

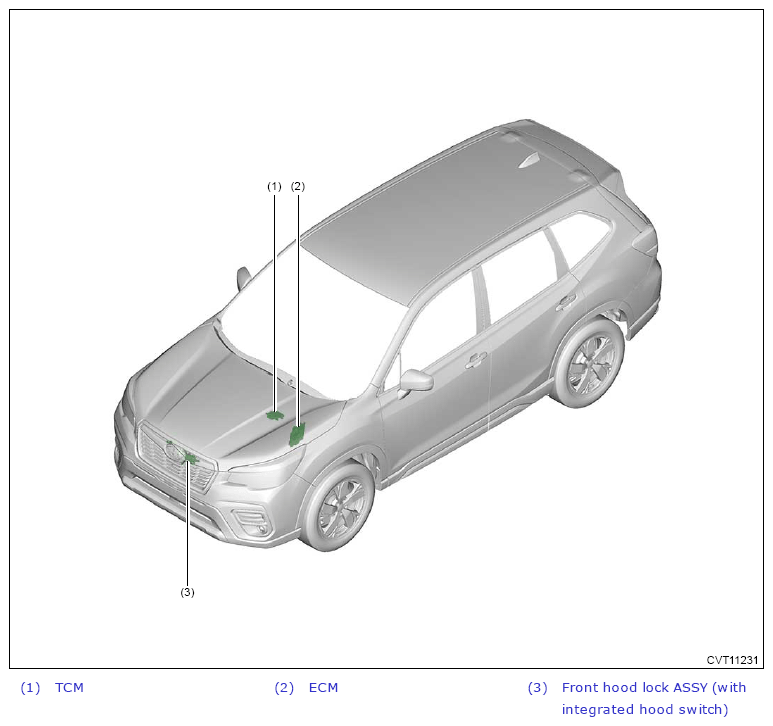

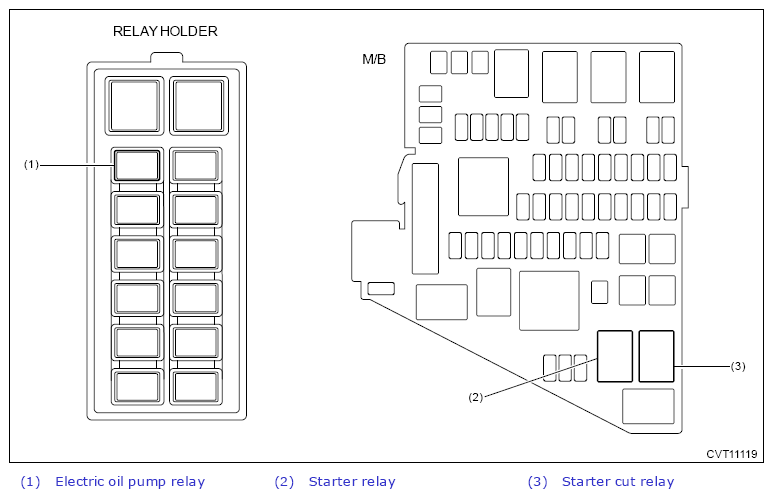

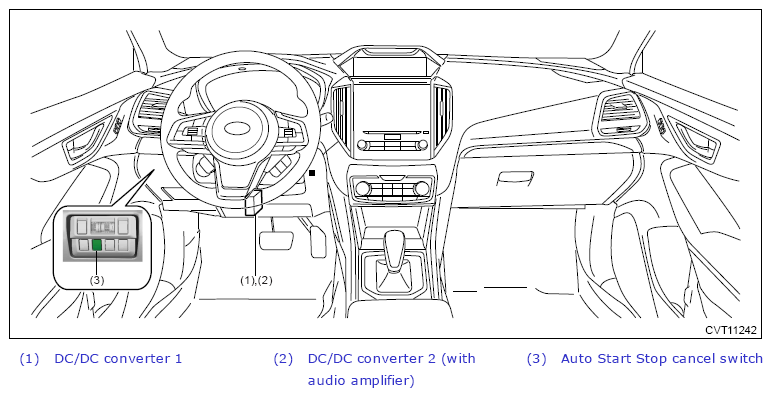

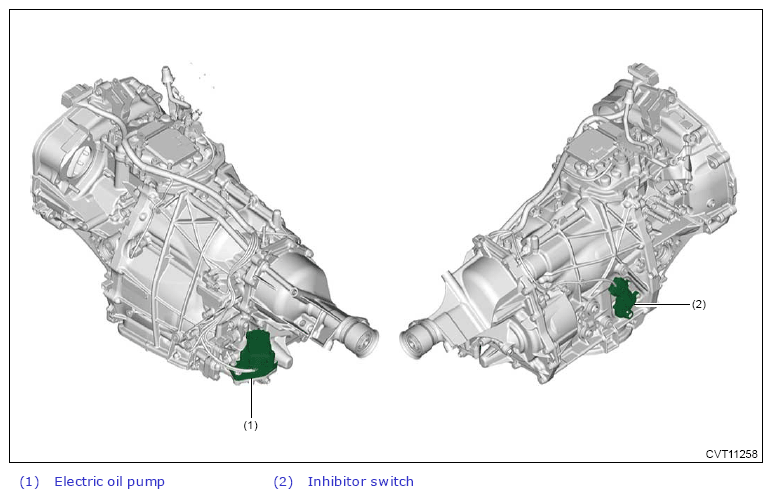

Auto Start Stop System (Diagnostics): Electrical Component Location: Location
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
