Entertainment System: Audio: Removal

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the center grille assembly. Ref. to HVAC SYSTEM (HEATER, VENTILATOR AND A/C)>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
Remove the heater control assembly. Ref. to HVAC SYSTEM (HEATER, VENTILATOR AND A/C)>CONTROL PANEL>REMOVAL .

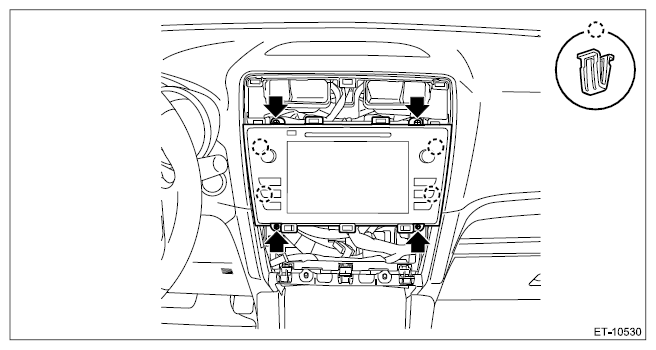

Remove the audio assembly.

Disconnect the connector and remove the audio assembly.

Courtesy of SUBARU OF AMERICA, INC.

NOTE: The model with telematics is equipped with the data communication module under the audio assembly.
