Front Regulator and Motor Assembly: Removal

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel - front door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>FRONT DOOR .
  3. Remove the sealing cover - front door. Ref. to EXTERIOR BODY PANELS>FRONT SEALING COVER>REMOVAL .
  4. Remove the glass assembly - front door. Ref. to GLASS/WINDOWS/MIRRORS>FRONT DOOR GLASS>REMOVAL .
  5. Remove the regulator and motor assembly - front.
    1. Disconnect the motor - front connector.

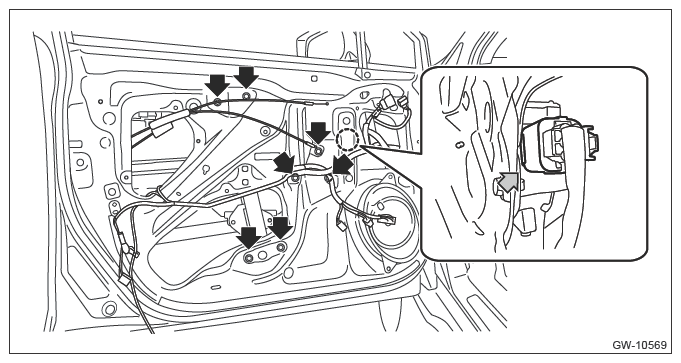

    2. Remove the bolts, and then remove the regulator and motor assembly - front.
      G13251193Courtesy of SUBARU OF AMERICA, INC.
