Engine Starting System & Charging System (2.5L): Generator: Removal

1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the V-belts. Ref. to MECHANICAL (H4DO)>V-BELT>REMOVAL .
3. Disconnect the connector (A) and terminal (B) from the generator, and remove the clip (C).

   Courtesy of SUBARU OF AMERICA, INC.

4. Remove the V-belt cover bracket.

   Courtesy of SUBARU OF AMERICA, INC.

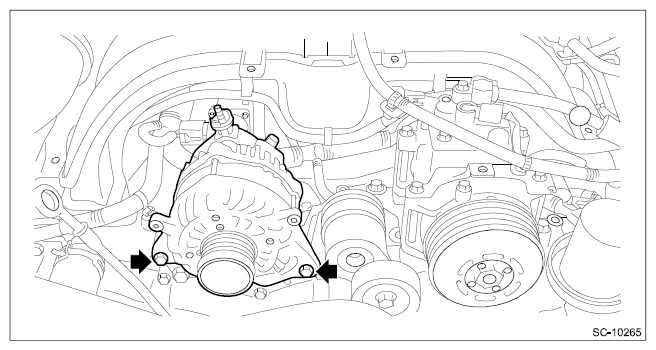

5. Remove the generator from the generator bracket.

   Courtesy of SUBARU OF AMERICA, INC.

6. Remove the V-belt tensioner assembly. Ref. to MECHANICAL (H4DO)>V-BELT>REMOVAL>V-BELT TENSIONER ASSEMBLY .

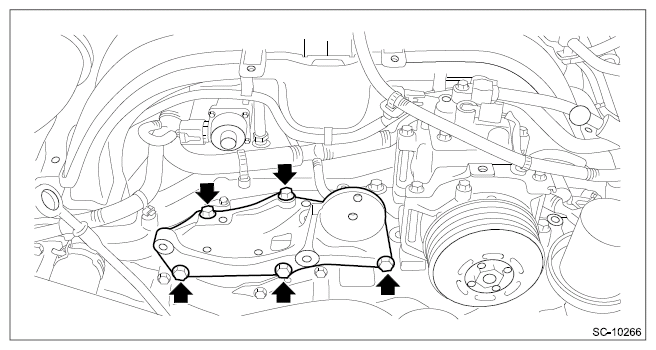

7. Remove the generator bracket from the engine.

Courtesy of SUBARU OF AMERICA, INC.
