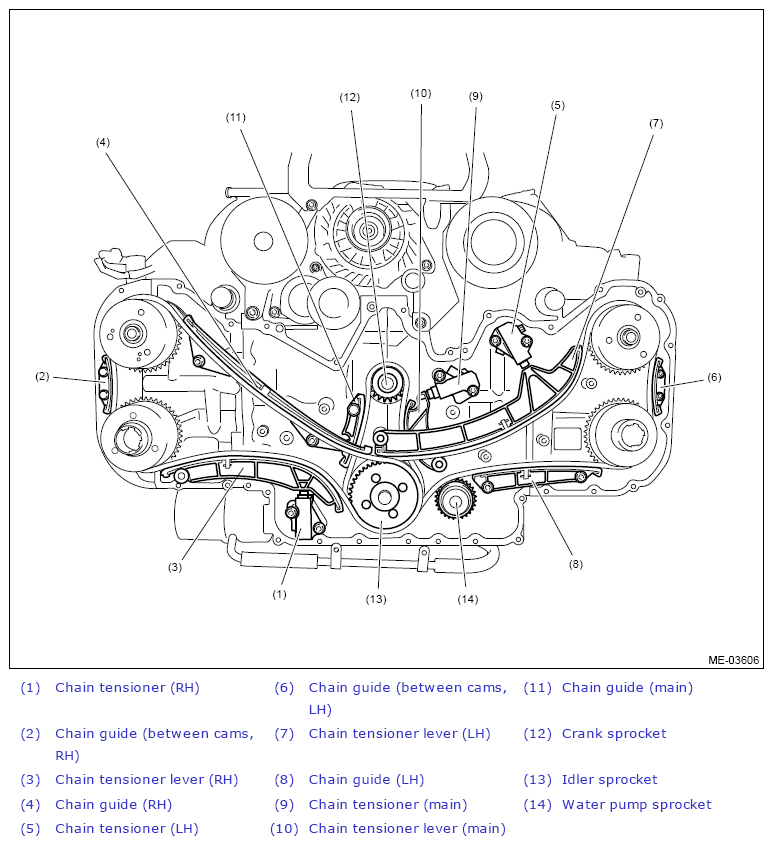

Timing Chain Assembly: Location

WARNING: This page is about a different variant/trim than selected.
G13248198Courtesy of SUBARU OF AMERICA, INC.
