Bushing Rear - Front Arm

  1. Remove the rear bushing.
    1. Put alignment marks on the front arm assembly and the bushing rear - front arm.
      • Front arm assembly replacement: put an alignment mark (a) from the cutout portion of the front arm assembly to the bushing rear - front arm.
        G10276631Courtesy of SUBARU OF AMERICA, INC.
      • Bushing rear - front arm replacement: put an alignment mark (b) on the front arm assembly located on an imaginary line extending from the rib portion of the bushing rear - front arm.
        G10276632Courtesy of SUBARU OF AMERICA, INC.

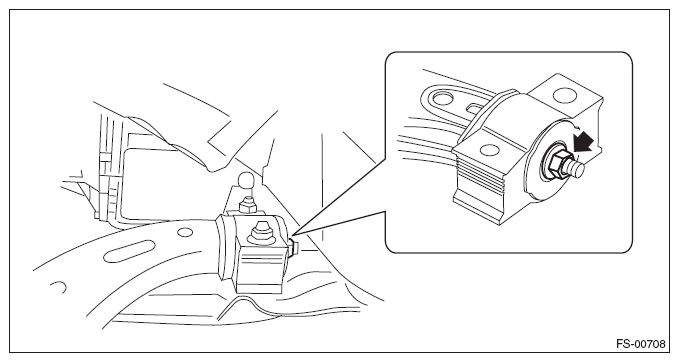

    2. Remove the self-locking nut, and then remove the rear bushing.
      G10276633Courtesy of SUBARU OF AMERICA, INC.
