Reverse Brake Assembly

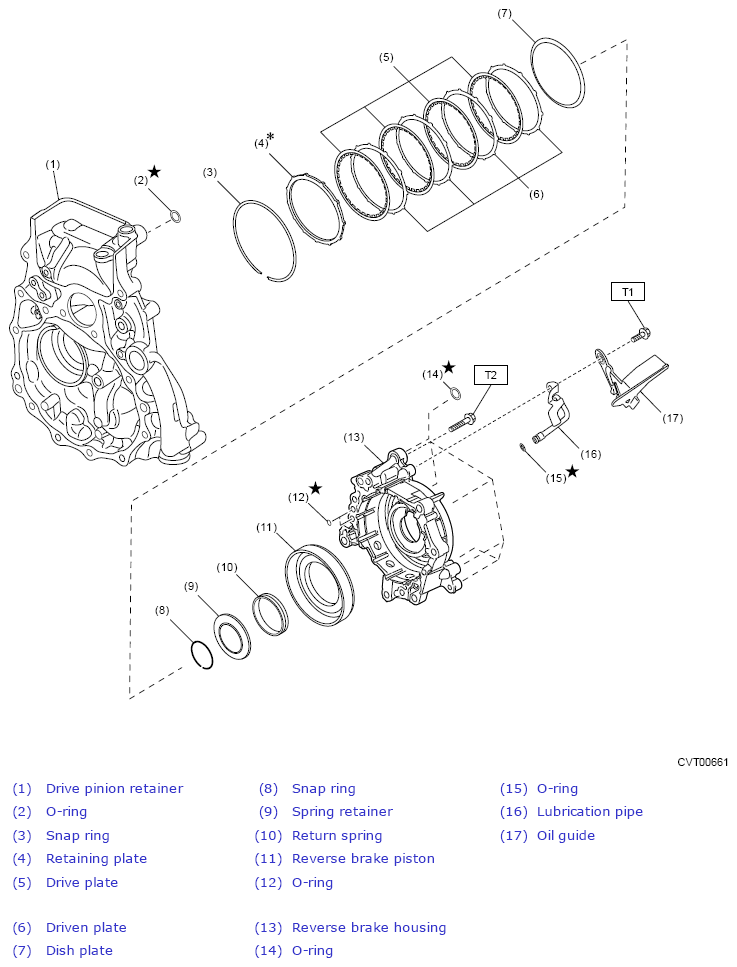

Fig 1: Reverse Brake Assembly Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: 37 (3.8, 27.3)
