Torque Converter Assembly: Removal

Remove the transmission assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>REMOVAL .

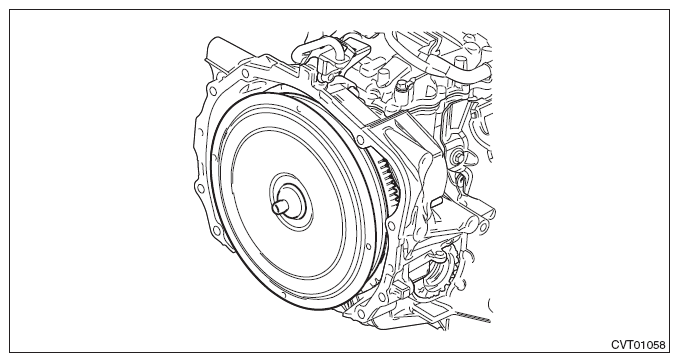

Pull out the torque converter assembly horizontally.
CAUTION: Do not scratch the inside of engaging parts.

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring from the input shaft.
