Transmission Case: Disassembly

Remove the oil stopper plate.

Courtesy of SUBARU OF AMERICA, INC.
Remove all plugs from the transmission case.

Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal using a screwdriver wrapped with cloth etc.

Courtesy of SUBARU OF AMERICA, INC.

Using the ST, remove the ball bearing of the secondary pulley.

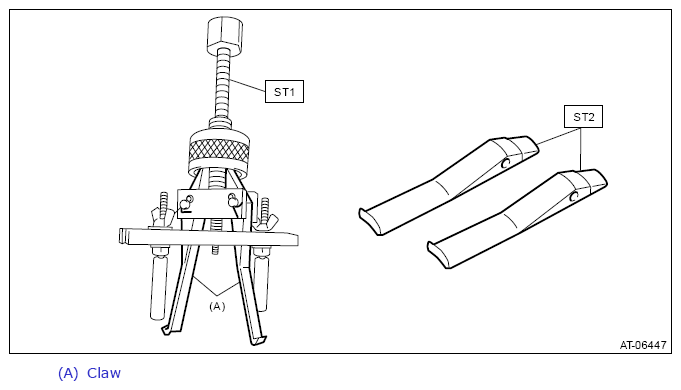

Remove the claw of ST1, and attach the claw of ST2.

ST1 398527700 PULLER ASSY

ST2 18760AA000 CLAW

Courtesy of SUBARU OF AMERICA, INC.

ST1 398527700 PULLER ASSY

ST2 18760AA000 CLAW

Courtesy of SUBARU OF AMERICA, INC.

Remove the oil guide.

Courtesy of SUBARU OF AMERICA, INC.
Remove the roller bearing of reduction driven gear.

Courtesy of SUBARU OF AMERICA, INC.
Remove the thrust bearing.

Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF filter cover and gasket.

Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF filter.

Courtesy of SUBARU OF AMERICA, INC.
