Unit And Rear Gate

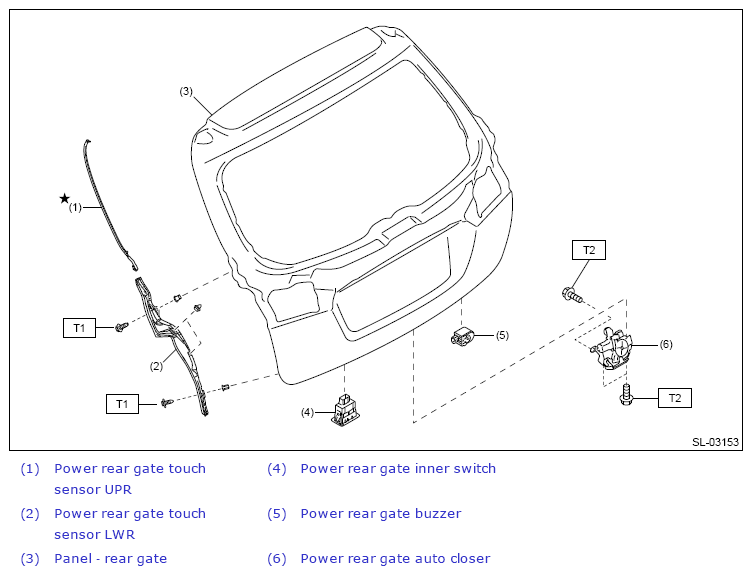

Fig 1: Unit And Rear Gate Components (With Torque Specification (1 Of 2))

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.4)

T2: 25 (2.5, 18.4)

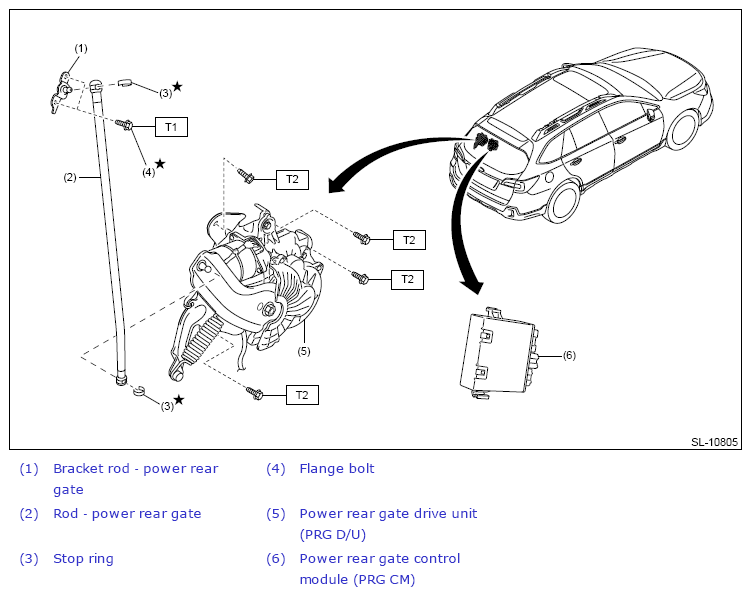

Fig 2: Unit And Rear Gate Components (With Torque Specification (2 Of 2))

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.5 (0.2, 1.1)

T2: 25 (2.5, 18.4)
