Engine Starting System & Charging System (3.6L): Generator: Disassembly

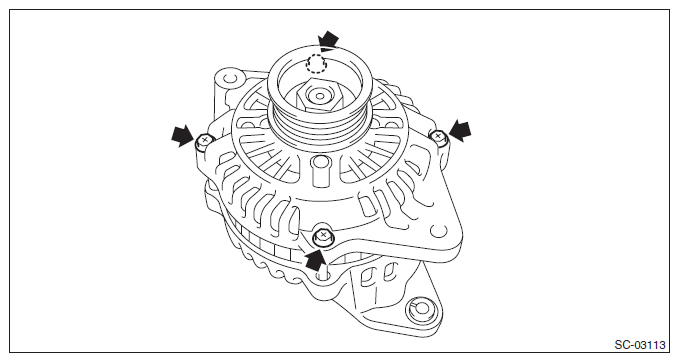

Remove the through bolt.

Courtesy of SUBARU OF AMERICA, INC.

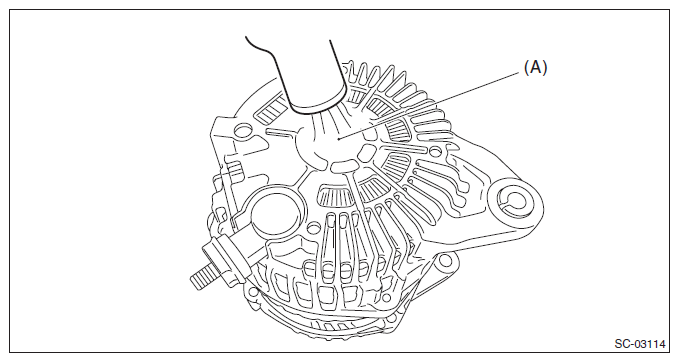

Use a drier to heat the rear cover (A) portion to 50 - 60°C (122 - 140°F).

Courtesy of SUBARU OF AMERICA, INC.

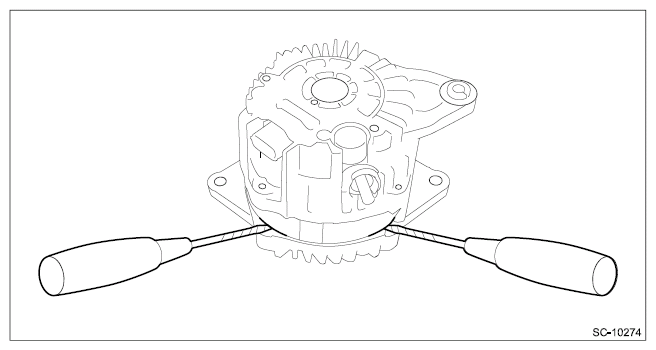

Insert a flat tip screwdriver or similar tool wrapped with protective tape into the gap between stator core and the front cover to remove the rotor from the rear cover.
CAUTION:
- Be careful not to deform or damage each part during operation.
- Disassemble while lifting the entire part equally.
Courtesy of SUBARU OF AMERICA, INC.

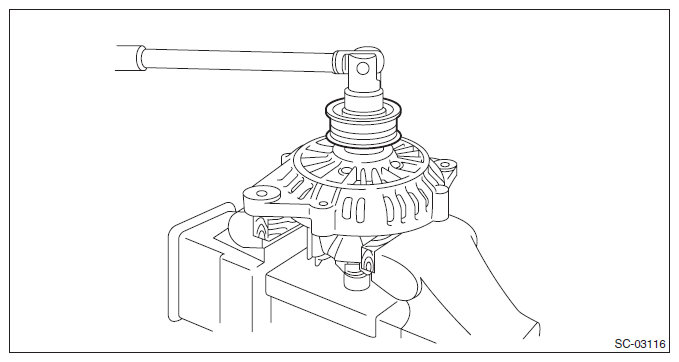

Hold the rotor on a vise and remove the pulley.
CAUTION:
- Place aluminum plates or wooden pieces into the contacting surfaces between the vise and the rotor to prevent rotor damage.
- Do not tighten the vise more than necessary.
Courtesy of SUBARU OF AMERICA, INC.

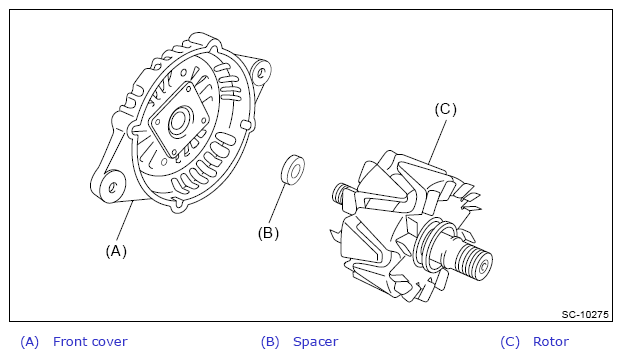

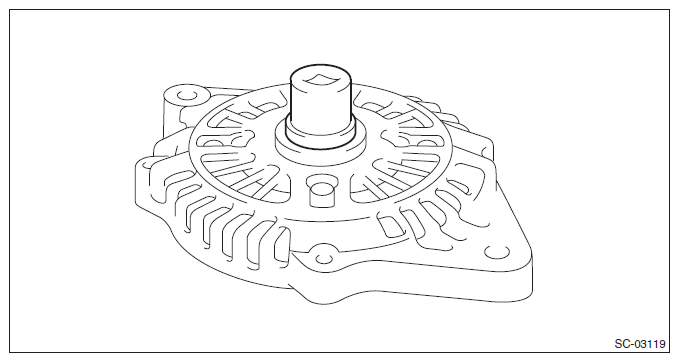

Remove the rotor from the front cover.

Courtesy of SUBARU OF AMERICA, INC.

When removing the ball bearing

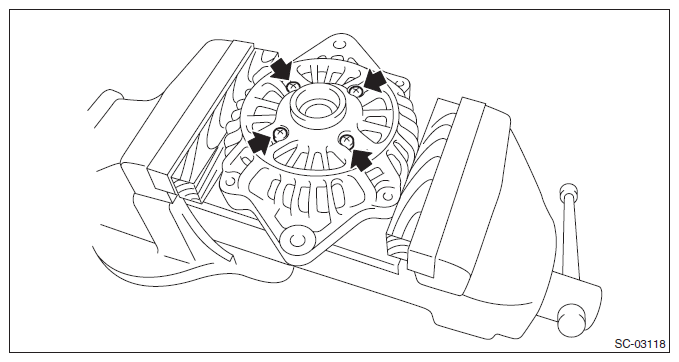

Remove the bearing retainer.

NOTE: If necessary, use a vise to secure the front cover.

Courtesy of SUBARU OF AMERICA, INC.

Set an appropriate tool (such as a socket wrench of proper size) for the bearing inner race.

Courtesy of SUBARU OF AMERICA, INC.

Using the bearing puller, remove the bearings from the rotor.
NOTE: This operation is required when replacing the bearings.

Courtesy of SUBARU OF AMERICA, INC.

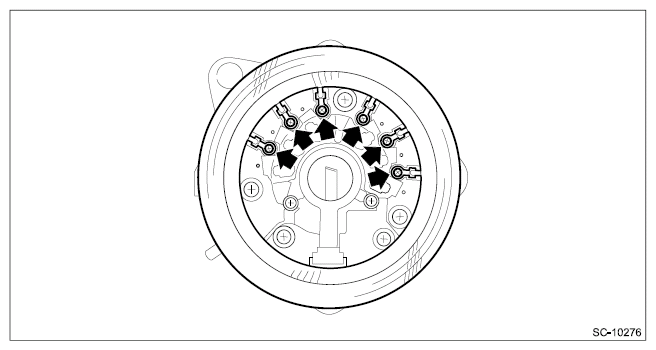

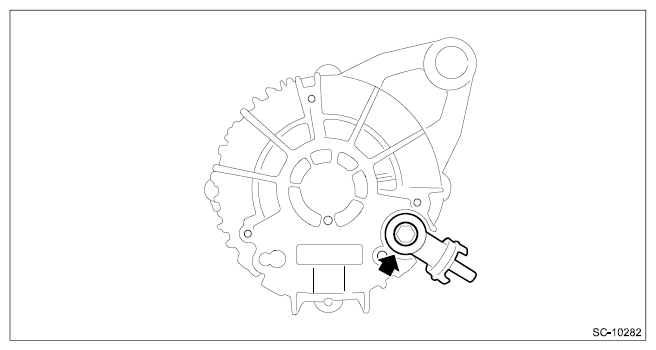

Remove the stator coil.

Courtesy of SUBARU OF AMERICA, INC.

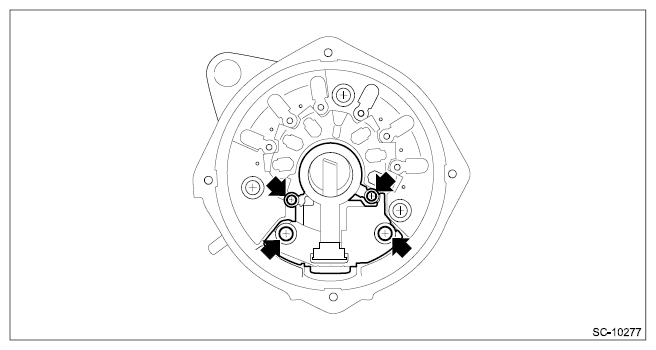

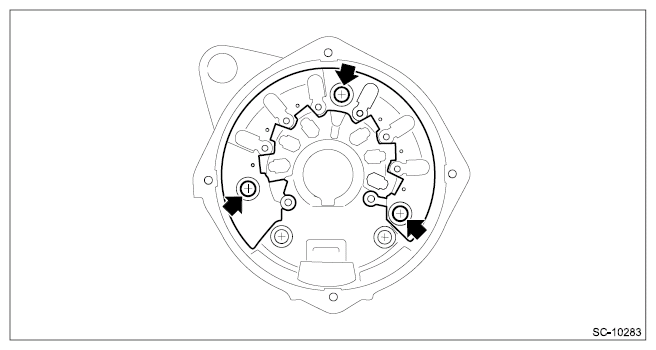

Remove the IC regulator.

Courtesy of SUBARU OF AMERICA, INC.
