Engine Starting System & Charging System (3.6L): Generator: Removal

  1. Remove the collector cover.
    1. Carefully pull up the rear of collector cover at two positions (A).
    2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.
      G11585612Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the V-belts. Ref. to MECHANICAL (H6DO)>V-BELT>REMOVAL .
  4. Disconnect the connector (A) and terminal (B) from the generator.
  5. Remove the harness cover (C) from the collector cover bracket.
    G12405871Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the tensioner assembly.
    G12405502Courtesy of SUBARU OF AMERICA, INC.

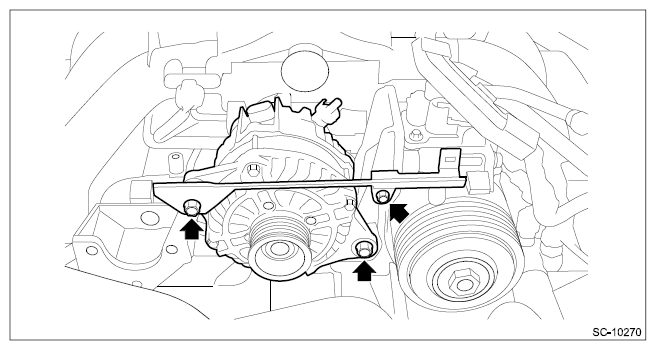

  7. Remove the collector cover bracket and the generator.
    G12405873Courtesy of SUBARU OF AMERICA, INC.

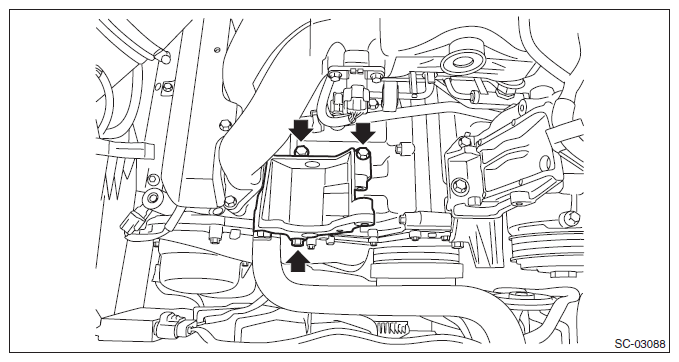

  8. Remove the generator bracket from the engine.
    G10264318Courtesy of SUBARU OF AMERICA, INC.
