General Description
›
Components With Torque Specifications
›
Air Intake System
Air Intake System

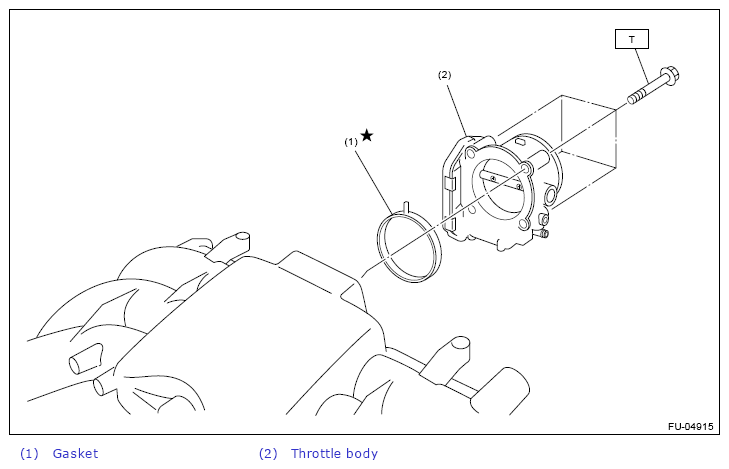

Fig 1: Air Intake System Components (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 8 (0.8, 5.9)
Courtesy of SUBARU OF AMERICA, INC.
