Transmission Control Module (TCM): Removal
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the air cleaner case. Ref. to INTAKE (INDUCTION) (H6DO)>AIR CLEANER CASE>REMOVAL .

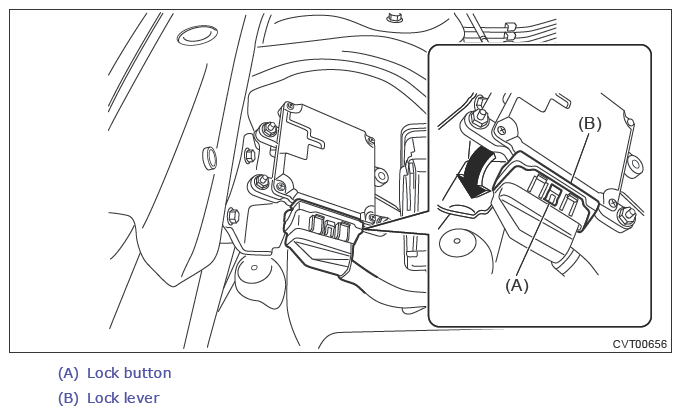

- Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.

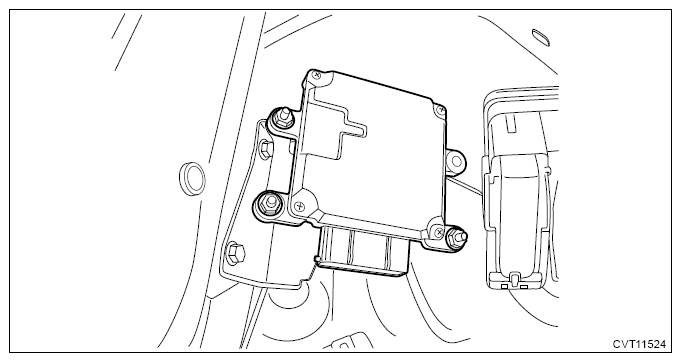

- Remove the TCM.
