Front Hood Lock Assembly: Removal

  1. Open the front hood.
  2. Remove the bumper face - front,

    Refer to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .

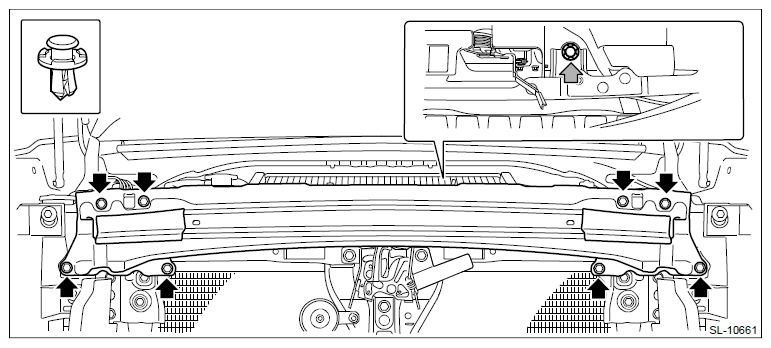

  3. Remove the bolts and clips, and remove the energy absorber plate - front.
    G12456996Courtesy of SUBARU OF AMERICA, INC.

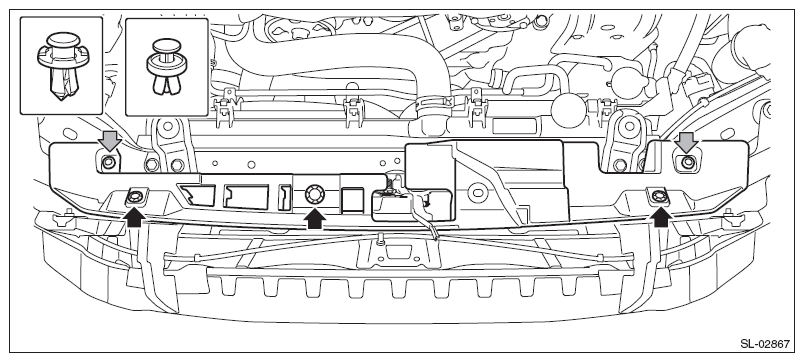

  4. Remove the clips, and remove the cover UPR - front.
    G10271028Courtesy of SUBARU OF AMERICA, INC.

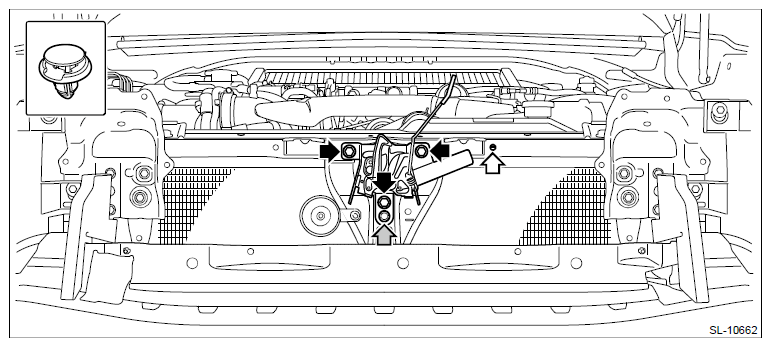

  5. Remove the lock assembly - front hood.
    1. Disconnect the connector.
    2. Remove the bolt and clip.
      G12456998Courtesy of SUBARU OF AMERICA, INC.

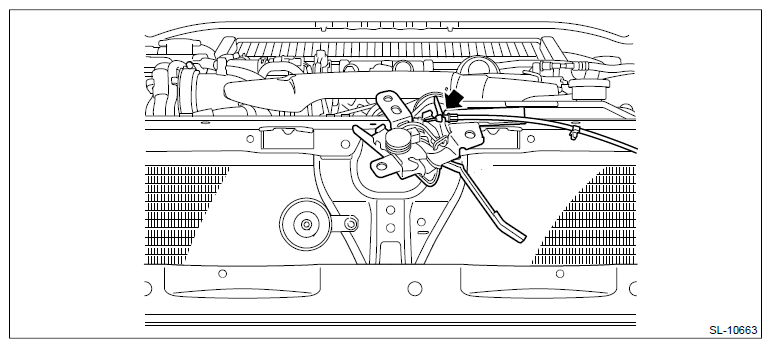

    3. Disconnect the release cable, and detach the lock assembly - front hood.
      G12456999Courtesy of SUBARU OF AMERICA, INC.
      NOTE: When disconnecting the release cable, refer to "FRONT HOOD OPENER" of "Remote Openers", Refer to SECURITY AND LOCKS>REMOTE OPENERS>REMOVAL>FRONT HOOD OPENER
