Multi-Function Display (MFD): Removal

  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the center grille assembly. Refer to HVAC SYSTEM (HEATER, VENTILATOR AND A/C)>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
  3. Release the claw and hook, and then remove the cover center UPR.
    G08316347Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Lightly push up the back of the cover center UPR, hook the finger to the end portion and pull it toward you to remove it.
  4. Remove the multi-function display.
    CAUTION: Be careful not to damage the multi-function display or instrument panel.
    1. Release the screws and claws.
    2. Pull the multi-function display assembly toward yourself, and disconnect the connector.
      G08316348Courtesy of SUBARU OF AMERICA, INC.

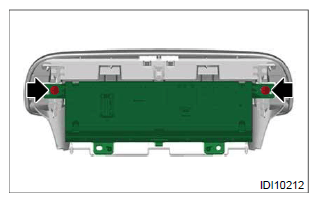

    3. Remove the screws and then remove the multi-function display.
      G12456068Courtesy of SUBARU OF AMERICA, INC.
