Fuel Pipe Insulator No. 1

  1. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
  2. Remove the intake manifold. Refer to FUEL INJECTION (FUEL SYSTEMS) (EXCEPT FOR STI)>INTAKE MANIFOLD>REMOVAL .
  3. Remove the clip (A) on the generator cord, and remove the fuel pipe protector.
    G09479647Courtesy of SUBARU OF AMERICA, INC.

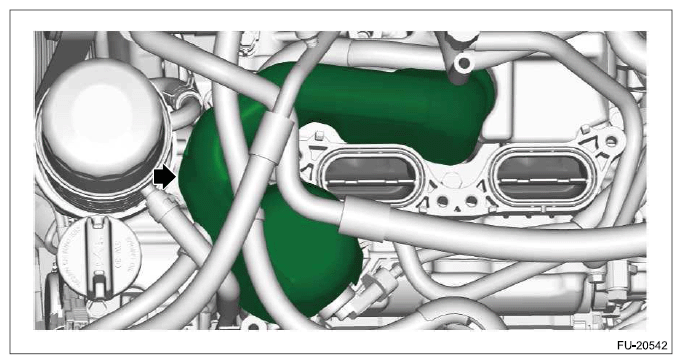

  4. Remove the fuel pipe insulator No. 1.
    G12444101Courtesy of SUBARU OF AMERICA, INC.
