Fuel Injection System (Except For STI)
›
General Description
›
Component With Torque Specifications
›
Throttle Body
Throttle Body

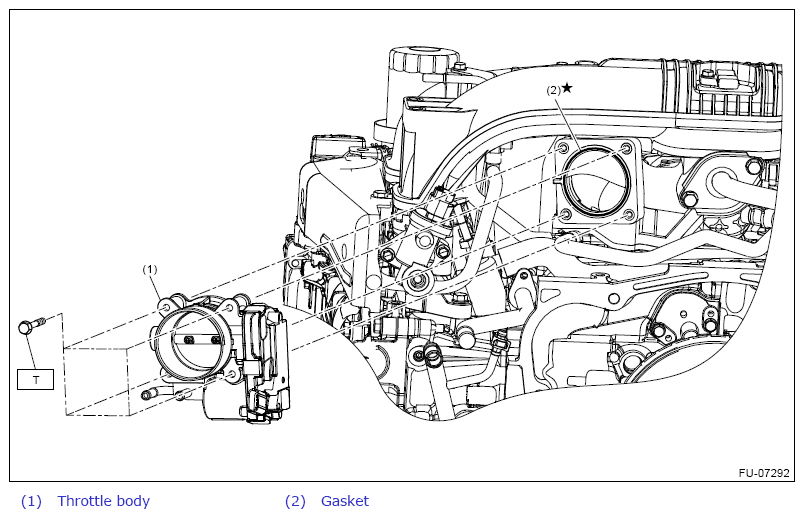

Fig 1: Components Of Throttle Body (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 8 (0.8, 5.9)
