Center Differential Carrier: Disassembly
WARNING: This page is about a different variant/trim than selected.

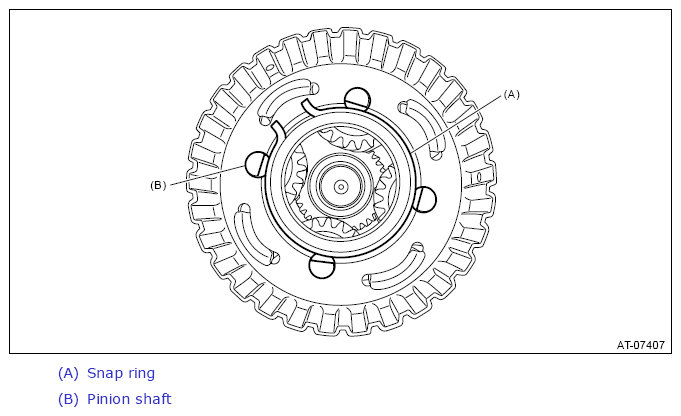

- Remove the snap ring, and pull out the pinion shaft from center differential assembly.
 Courtesy of SUBARU OF AMERICA, INC.
|

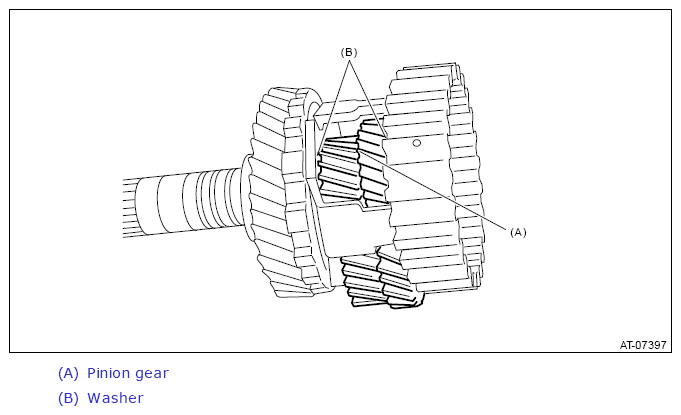

- Remove the pinion gear and washers from center differential assembly.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the intermediate shaft and thrust bearing.
