Transmission Harness: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission from the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>REMOVAL .
  2. Prepare for overhaul. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>PREPARATION FOR OVERHAUL .

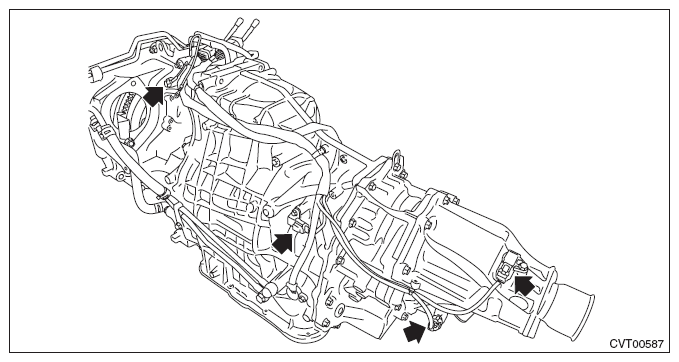

  3. Remove the transmission harness ground terminal and remove the harness connectors from front wheel speed sensor, rear wheel speed sensor and secondary speed sensor.
    G10268182Courtesy of SUBARU OF AMERICA, INC.

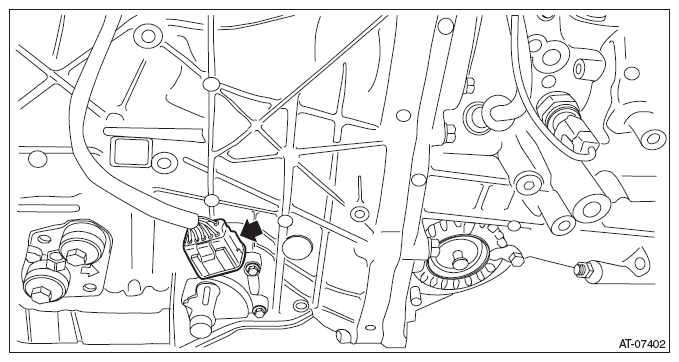

  4. Remove the harness connectors from inhibitor switch, primary speed sensor and secondary pressure sensor.
    G09482034Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the transmission harness stay.
    G09481937Courtesy of SUBARU OF AMERICA, INC.
  6. Remove transmission harness connector and inhibitor harness connector from harness stay.
  7. Remove the control valve body. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONTROL VALVE BODY>REMOVAL .
  8. Remove the mounting bolt to pull out the bushing of transmission harness from transmission case round hole.
    G06654468Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the harness clip from transmission assembly.
