Front Hood Damper Stay
- Always perform works such as inspections and maintenance with both damper stays attached.CAUTION: At the inspection and general maintenance, do not detach the damper stays.

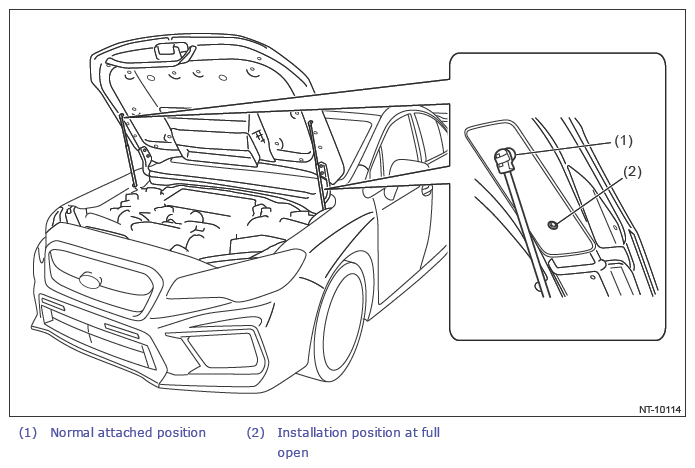

- When wider hood opening is necessary, set the damper stay below as shown in the figure.
Tightening torque:
Refer to EXTERIOR BODY PANELS>GENERAL DESCRIPTION>COMPONENT>FRONT HOOD .
CAUTION:- The hood cannot be closed with the hood damper on the full open side. When it is necessary to close, tie the hood striker and the radiator panel with a string etc. to fix them.
- After work, set the damper stays back to the normal position and tighten the bolts to the specified torque.
