Rear Shock Absorber

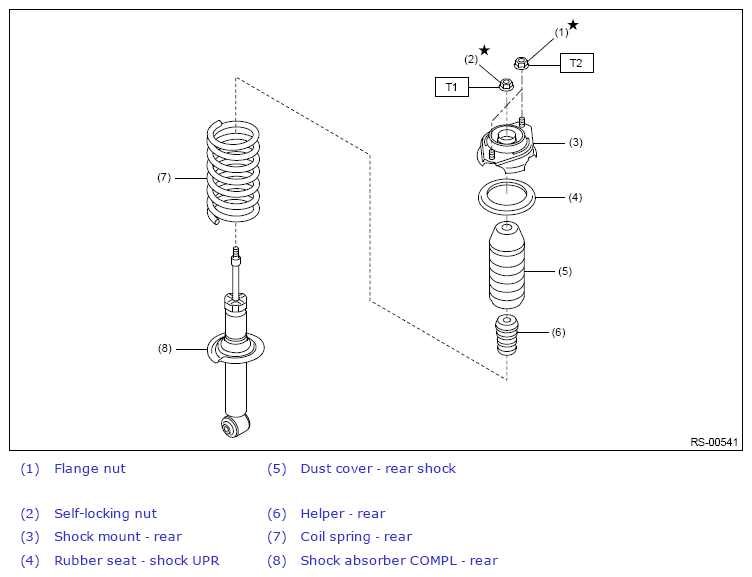

Fig 1: Explode View Of Rear Shock Absorber Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N-m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 30 (3.1, 22.1)
