Drive Plate: Removal

  1. Remove the transmission assembly from the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>REMOVAL .
  2. Set the ST.

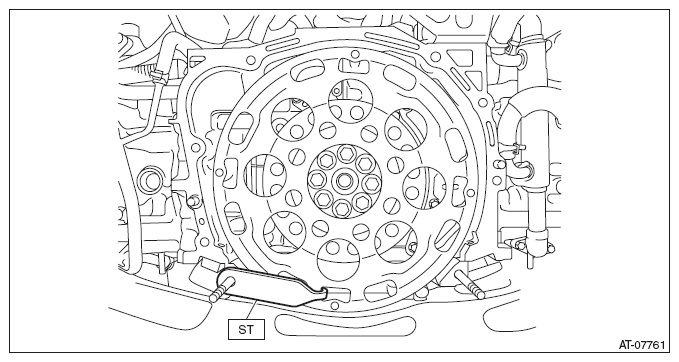

    NOTE: Set the ST to the drive plate referring to the illustration.
    ST 498497300 CRANKSHAFT STOPPER
    G09482058Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the drive plate and reinforcement drive plate.
