Front Differential Gear

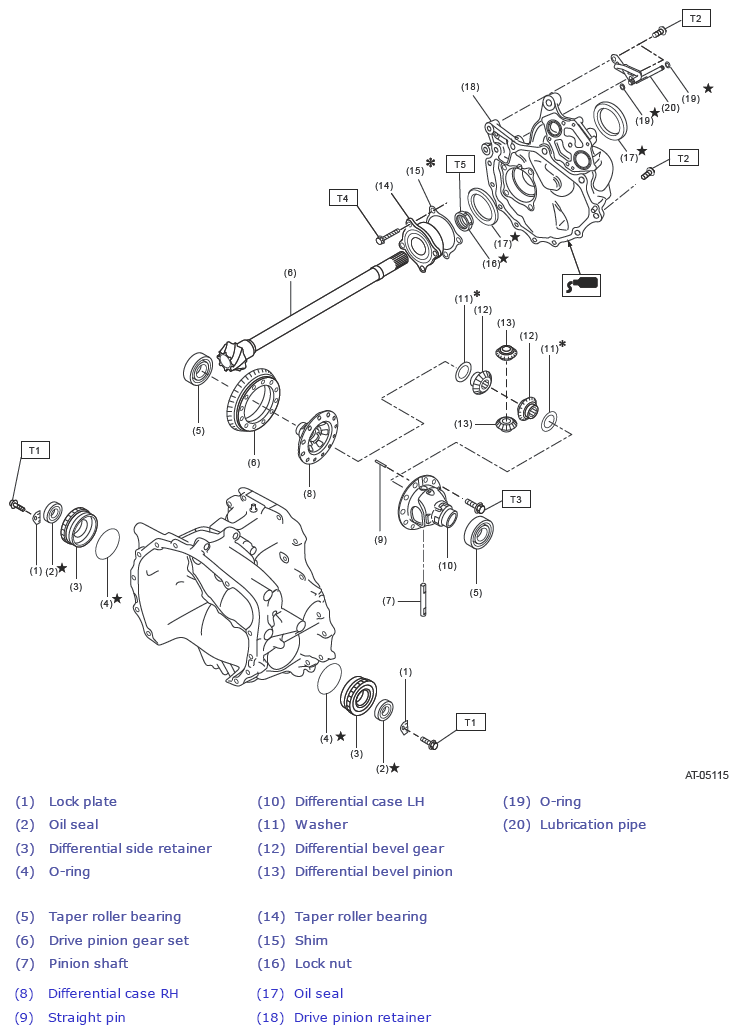

Fig 1: Front Differential Gear Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 43 (4.4, 31.7)

T3:  Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>FRONT DIFFERENTIAL ASSEMBLY>ASSEMBLY>DIFFERENTIAL CASE ASSEMBLY .

T4: 70 (7.1, 51.6)

T5: 130 (13.3, 95.9)
