Inhibitor Switch: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
  3. Lift up the vehicle.

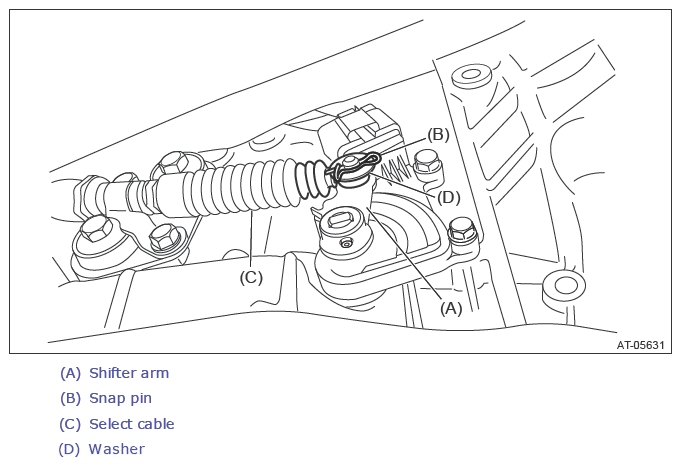

  4. Remove the snap pin and washer, and disconnect the select cable.
    CAUTION: Do not apply extra overload while holding the part (A).
    G11255302Courtesy of SUBARU OF AMERICA, INC.
    G13260909Courtesy of SUBARU OF AMERICA, INC.

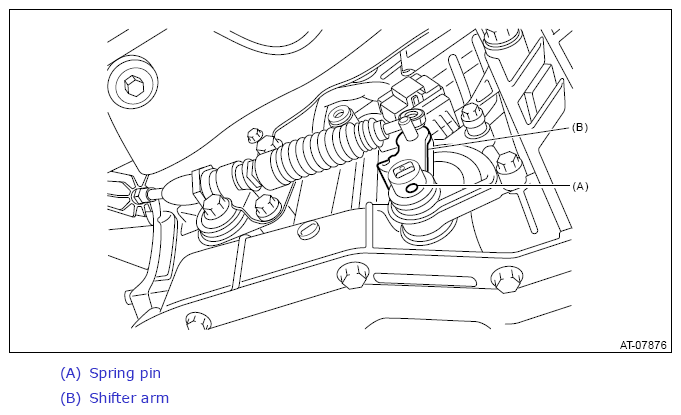

  5. Remove the spring pin and shifter arm.
    G13260910Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the inhibitor harness connector from inhibitor switch.
  7. Remove the two inhibitor switch securing bolts.
    G07913384Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the inhibitor switch.
