Reverse Brake Assembly: Disassembly

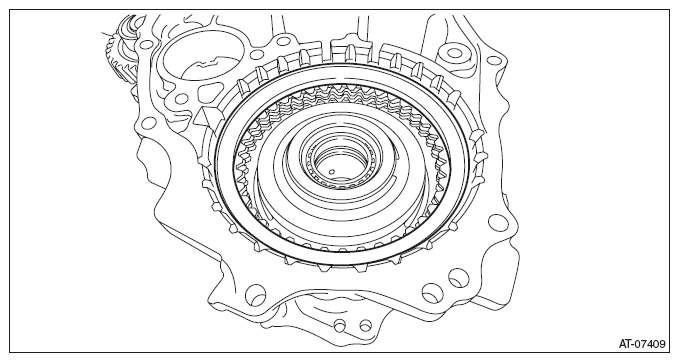

  1. Remove the snap ring.
  2. Remove the retaining plate, drive plate, driven plate and dish plate.
    G09482117Courtesy of SUBARU OF AMERICA, INC.
  3. Set the ST1, ST2 and ST3 to intermediate case.
    ST1 18762AA001 COMPRESSOR SPECIAL TOOL
    ST2 18763AA000 COMPRESSOR SHAFT
    ST3 18765AA000 COMPRESSOR SUPPORT
    G09482118Courtesy of SUBARU OF AMERICA, INC.
  4. Compress the return spring using the set ST to remove the snap ring.
    G09482119Courtesy of SUBARU OF AMERICA, INC.
  5. Using the ST, remove the snap ring and spring retainer.
    G13261029Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the return spring.
    G09482121Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the reverse brake piston by blowing compressed air intermittently from intermediate case hole.
    G09482122Courtesy of SUBARU OF AMERICA, INC.
