General Description
›

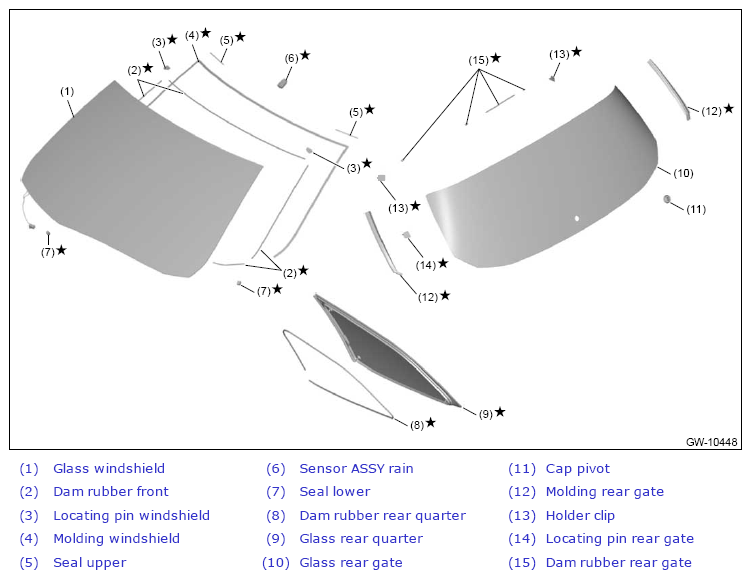

Components With Torque Specifications
›
Fixed Glass
Fixed Glass
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
Base inner mirror and bracket rain sensor cannot be removed from the glass windshield.
Courtesy of SUBARU OF AMERICA, INC.
