Engine Starting System & Charging System
›
Charging System
›
Wiring Diagram

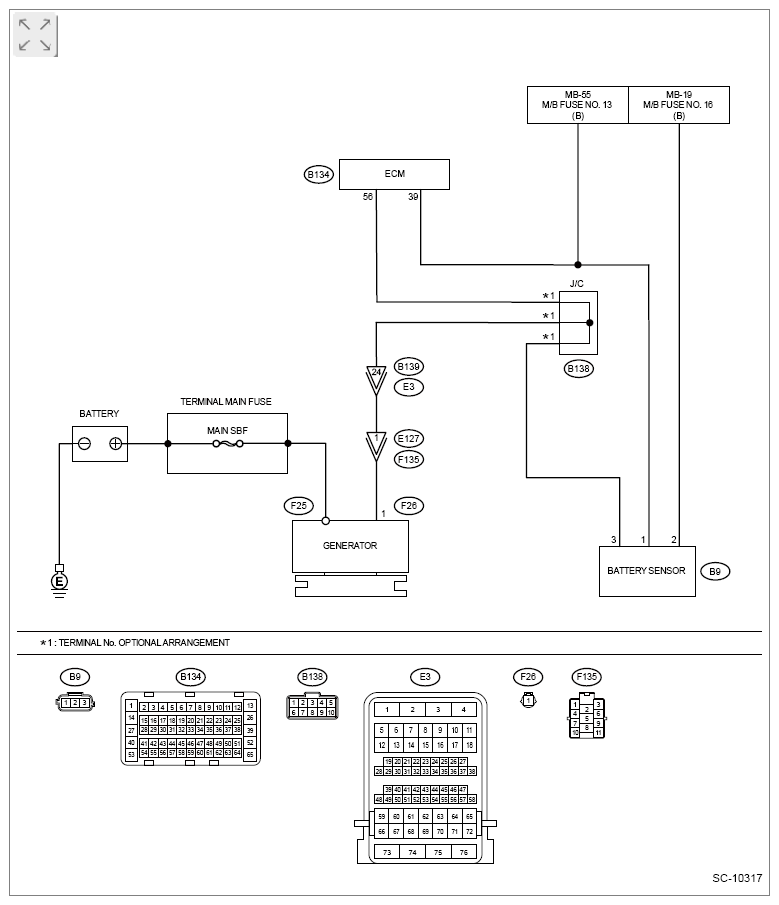

Charging System: Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
