Radiator Fan Control Module (Main)

  1. Disconnect the ground terminal from battery sensor.

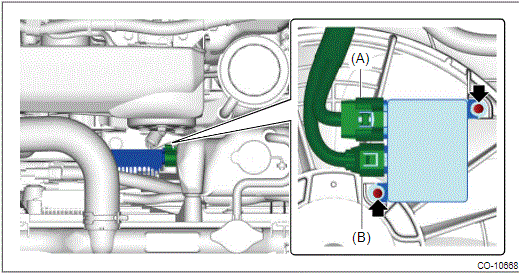

  2. Disconnect the connector (A) and connector (B), and remove the radiator fan control module (main).
    G00596978Courtesy of SUBARU OF AMERICA, INC.
