Radiator Fan Control Module (Sub)

Disconnect the ground terminal from battery sensor. Ref. to BATTERY .

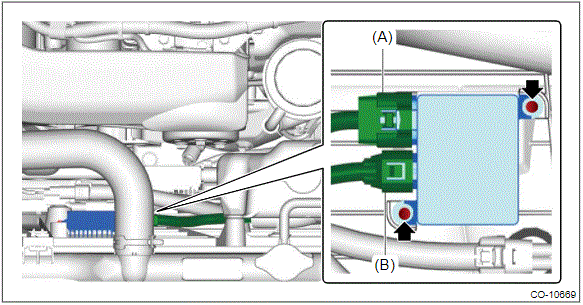

Disconnect the connector (A) and connector (B), and remove the radiator fan control module (sub).

Courtesy of SUBARU OF AMERICA, INC.
