AT Shift Lock Control System
›

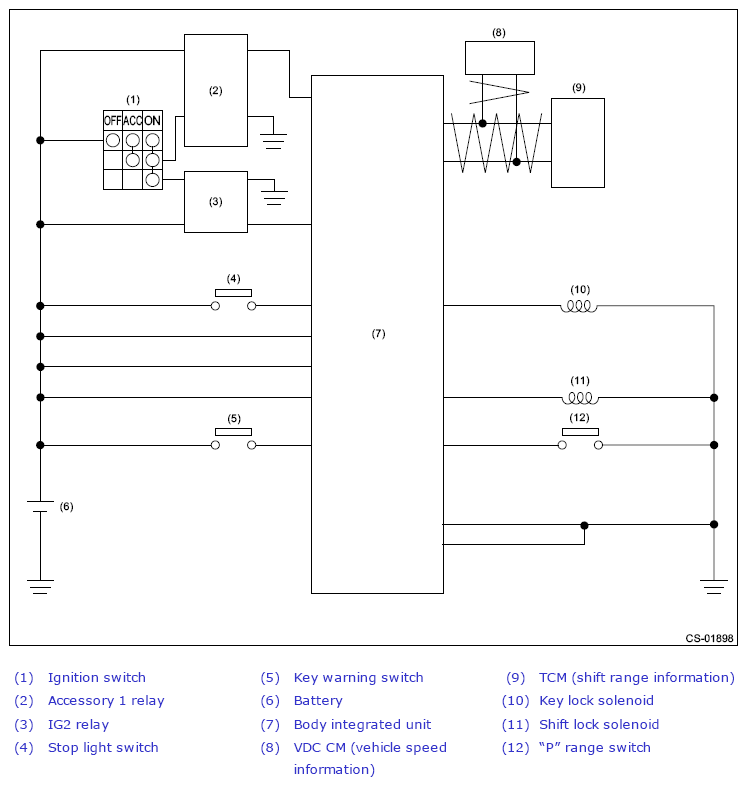

Wiring Diagram
›
Model Without Push Button Ignition Switch
Model Without Push Button Ignition Switch
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
