Fuel Tank Protector: Removal

  1. Lift up the vehicle.

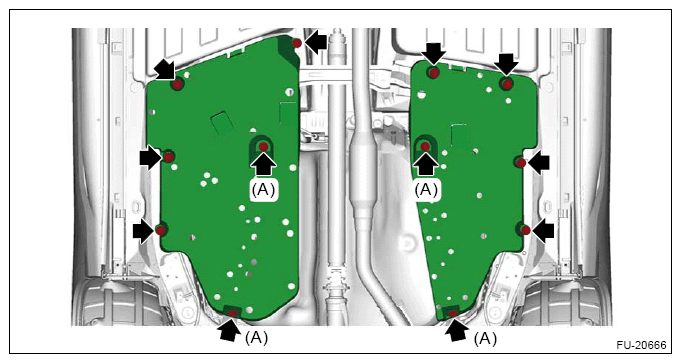

  2. Remove the bolt and clip (A) and remove the fuel tank protector.
    G13198342Courtesy of SUBARU OF AMERICA, INC.
