Fuel Pressure Sensor (FA20)
›
Exploded View
Exploded View

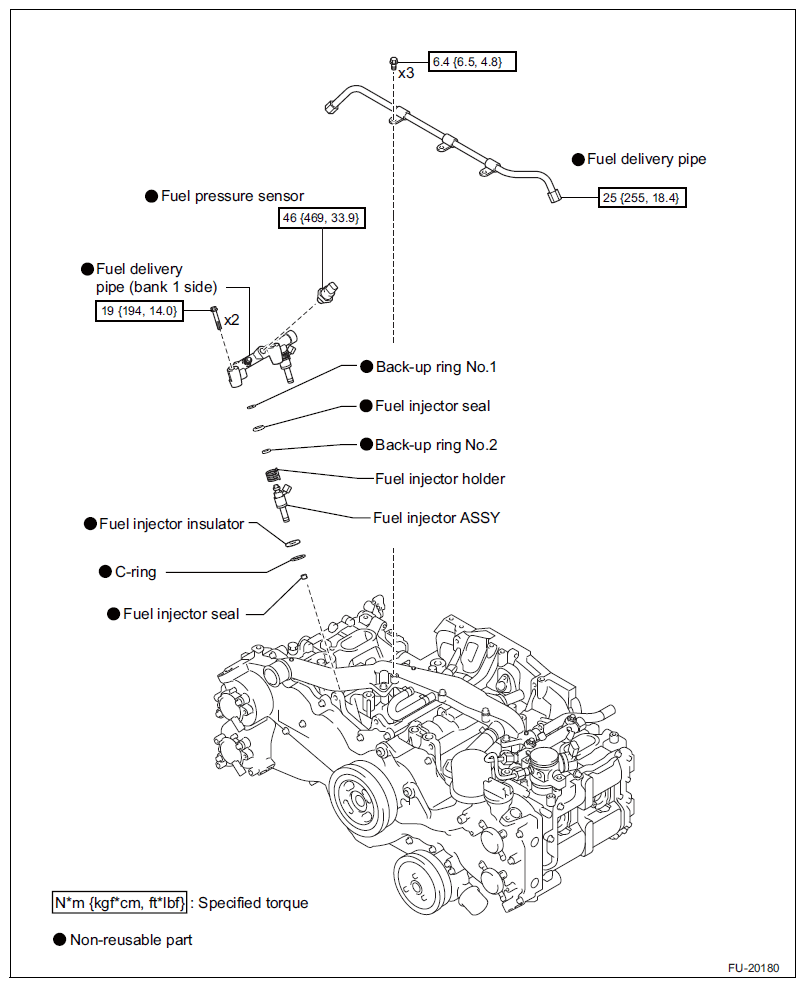

Fig 1: Fuel Pressure Sensor (FA20) Components With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
